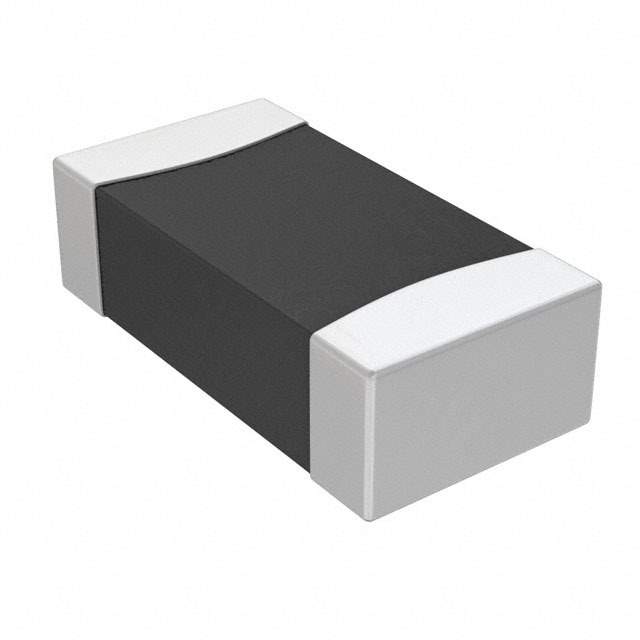

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Temperature Sensors - NTC Thermistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series Automotive, AEC-Q200, NTCS0603E
Package Tape & Reel
Resistance in Ohms @ 25°C 4.7k
Resistance Tolerance ±5%
B Value Tolerance ±1%
B25/85 3830K
Temperature Range - Operating -40°C ~ 150°C
Power - Max 125 mW
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 2381 615 33472,BC2539DKR,2381 615 33472-ND,238161533472,BC2539TR,BC2539CT
Standard Package 4,000
Win Source Part Number 964641-NTCS0603E3472JHT
Ultra Librarian 3D Model Ultra Librarian NTCS0603E3472JHT CAD Model

Description

The Vishay NTCS0603E3472JHT is a temperature sensor NTC thermistor used in automotive applications.

  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Part Number: NTCS0603E3472JHT
  • Win Source Part Number: 964641-NTCS0603E3472JHT
  • Category: Temperature Sensor NTC Thermistor
  • Application: Automotive
  • Mounting Style: Surface Mount
  • Standard Package: 4,000
  • Power Rating: 125 mW
  • Resistance @ 25 Degrees Celsius: 4.7k ohms
  • Tolerance: +/-5 percent
  • B Value Tolerance: +/-1 percent
  • Temperature Range: -40 degrees Celsius to 150 degrees Celsius
