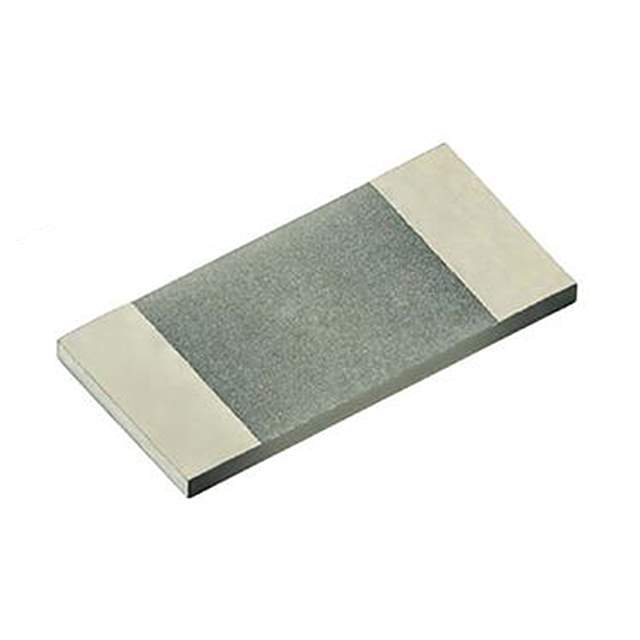

PCAN0603E49R9BST5 Real Image
Same model may have multiple batches, images only for reference.

PCAN0603E49R9BST5

Part No PCAN0603E49R9BST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 49.9 OHM 0.1% 1/2W 0603 / 49.9 Ohms ±0.1% 0.5W, 1/2W Chip Resistor 0603 (1608 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
PCAN0603E49R9BST5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PCAN
Package Tape & Reel
Resistance 49.9 Ohms
Tolerance ±0.1%
Power (Watts) 0.5W, 1/2W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.064" L x 0.032" W (1.63mm x 0.81mm)
Height - Seated (Max) 0.018" (0.46mm)
Number of Terminations 2
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1339501-PCAN0603E49R9BST5
Ultra Librarian 3D Model Ultra Librarian PCAN0603E49R9BST5 CAD Model

Description

The PCAN resistor is a chip resistor manufactured by Vishay Dale Thin Film that is surface-mounted.

  • Package: Tape & Reel
  • Size/Dimension: 0.064" L x 0.032" W (1.63mm x 0.81mm)
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power: 0.5W
  • Resistance: 49.9 Ohms
  • Composition: thin film
  • Terminations: 2
  • Operating Temperature Range: -55°C to 155°C
