Same model may have multiple batches, images only for reference.

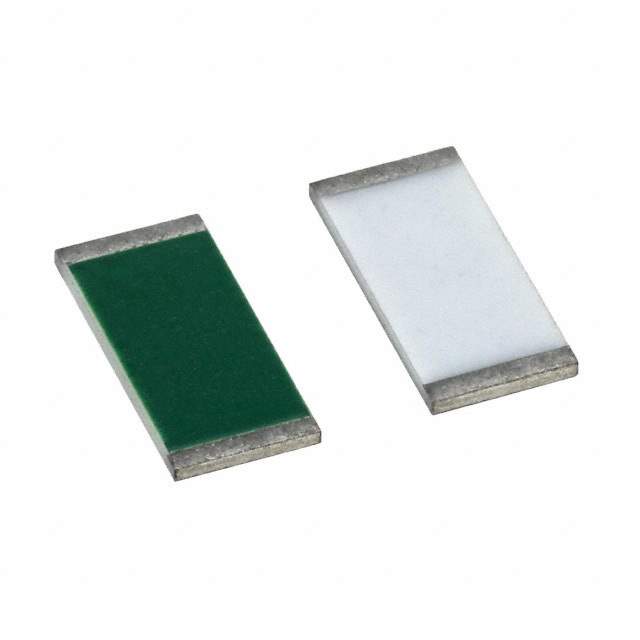

PLT0805Z1742LBTS Real Image
Same model may have multiple batches, images only for reference.

PLT0805Z1742LBTS

Part No PLT0805Z1742LBTS
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 17.4KOHM 0.01% 1/4W 0805 / 17.4 kOhms ±0.01% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Anti-Corrosive, Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
PLT0805Z1742LBTS Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PLT
Package Tape & Reel
Resistance 17.4 kOhms
Tolerance ±0.01%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Corrosive, Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±5ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1348594-PLT0805Z1742LBTS
Ultra Librarian 3D Model Ultra Librarian PLT0805Z1742LBTS CAD Model

Description

The PLT0805Z1742LBTS resistor is a chip resistor that belongs to the surface mount resistors category.

  • Manufacturer: Vishay Dale Thin Film
  • Tolerance: ±0.01%
  • Resistance: 17.4 kOhms
  • Standard Package: 1
  • Power: 0.25W
  • Temperature Coefficient: ±5ppm/°C
  • REACH: unaffected
  • ECCN: EAR99
  • Features: anti-corrosive, flame-proof, moisture-resistant, and safe
