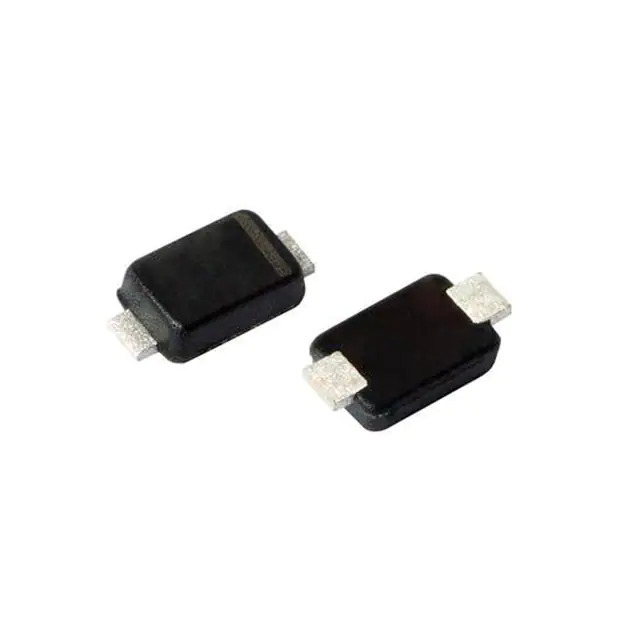

Same model may have multiple batches, images only for reference.
PLZ36D-G3/H Vishay
Same model may have multiple batches, images only for reference.

PLZ36D-G3/H

Part No PLZ36D-G3/H
Manufacturer Vishay
Catalog Diodes - Zener - Single
Description DIODE ZENER 36V 500MW DO219AC
Datasheet
PLZ36D-G3/H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series PLZ
Package Tape & Reel
Product Status Active
Voltage - Zener (Nom) (Vz) 36 V
Tolerance ±3%
Power - Max 500 mW
Impedance (Max) (Zzt) 75 Ohms
Current - Reverse Leakage @ Vr 200 nA @ 27 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Temperature Range - Operating 150°C
Mounting Type Surface Mount
Package / Case DO-219AC
Supplier Device Package DO-219AC (microSMF)
Base Product Number PLZ36
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 1367562-PLZ36D-G3/H
Ultra Librarian 3D Model Ultra Librarian PLZ36D-G3/H CAD Model

Description

The PLZ36D-G3/H is a single zener diode from Vishay General Semiconductor - Diodes Division. It belongs to the PLZ series and comes in a DO-219AC package.

  • Voltage: 36V
  • Power Dissipation: 500mW
  • Tolerance: ±3%
  • Impedance: 75 Ohms
  • Forward Voltage (Vf): 900mV @ 10mA
  • Current Reverse Leakage: 200nA @ 27V
  • Mounting Type: Surface Mount
  • Operating Temperature: 150°C (Maximum)
  • Package: DO-219AC
