Same model may have multiple batches, images only for reference.

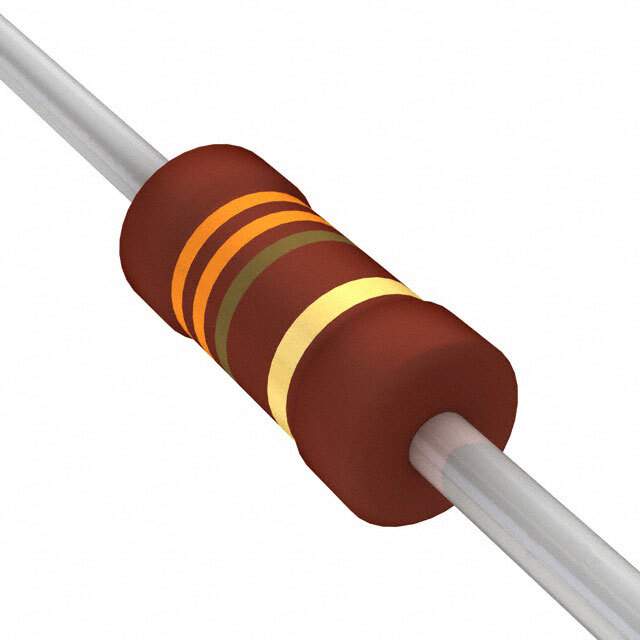

PR03000203300JAC00 Real Image
Same model may have multiple batches, images only for reference.

PR03000203300JAC00

Part No PR03000203300JAC00
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 330 OHM 3W 5% AXIAL / 330 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Fusible, Safety Metal Film
Datasheet
PR03000203300JAC00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR03
Package Cut Tape (CT),Tape & Box (TB)
Resistance 330 Ohms
Tolerance ±5%
Power (Watts) 3W
Composition Metal Film
Features Flame Retardant Coating, Fusible, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.205" Dia x 0.657" L (5.20mm x 16.70mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names BC330W-3JCTINACTIVE,5093NW330R0JA8AFX,5093NW330R0JBC,BC330W-3JTB-NDR,PPC330W-3JTB,PPC330W-3JCT,5093NW330R0J,PPC330W-3JTB-NDR,232219514331,BC330W-3JCT,BC330W-3JTB-ND,BC330W-3JTB,BC330W-3JCT-ND,PPC330W-3JCT-NDR,BC330W-3JTBINACTIVE,2322 195 14331
Standard Package 500
Win Source Part Number 1035616-PR03000203300JAC00
Ultra Librarian 3D Model Ultra Librarian PR03000203300JAC00 CAD Model

Description

The Vishay PR03 series resistor has a resistance of 330 Ohms and a power rating of 3W.

  • Resistance: 330 Ohms
  • Power Rating: 3W
  • Mounting Type: Through-Hole
  • Package/Case: Axial
  • Tolerance: ±5%
  • Temperature Coefficient: ±250ppm/°C
  • Composition: Metal Film
  • Terminations: 2
  • Features: Flame Retardant Coating, Fusible, Safety
  • Operating Temperature Range: -55°C to 155°C
  • Packaging: Cut Tape (CT) or Tape and Box (TB)
  • Standard Package: 500
  • Alternative Parts: PR01000103300JA100, PR02000203300JA100, PR02000203300JR500, RSMF1JT330R, ROX3SJ330RPR03000203300JAC00
  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • MSL Level: Not Applicable
