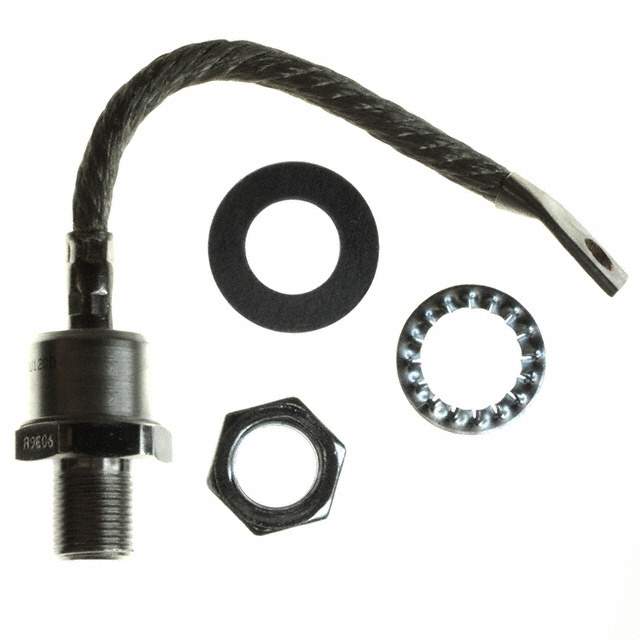

SD253N04S15PV Real Image
Same model may have multiple batches, images only for reference.

SD253N04S15PV

Part No SD253N04S15PV
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Datasheet
SD253N04S15PV Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Product Status Obsolete
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 250A
Voltage - Forward (Vf) (Max) @ If 1.38 V @ 785 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.5 µs
Current - Reverse Leakage @ Vr 35 mA @ 400 V
Mounting Type Stud Mount
Package / Case DO-205AB, DO-9, Stud
Supplier Device Package DO-205AB, DO-9
Operating Temperature - Junction -40°C ~ 125°C
Base Product Number SD253
Other Names *SD253N04S15PV
Standard Package 12
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281939-SD253N04S15PV
Ultra Librarian 3D Model Ultra Librarian SD253N04S15PV CAD Model

Description

The SD253N04S15PV is a standard diode with a maximum DC reverse voltage of 400V and an average rectified current of 250A.

  • Maximum DC Reverse Voltage: 400V
  • Average Rectified Current: 250A
  • Forward Voltage: 1.38V @ 785A
  • Reverse Recovery Time: 1.5µs
  • Mounting Type: Stud Mounting
  • Package/Case: DO-205AB, DO-9, stud
  • Series: SD253
  • Manufacturer: Vishay General Semiconductor - Diodes Division
  • Status: Obsolete
  • RoHS: Non-compliant
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8541.10.0080
