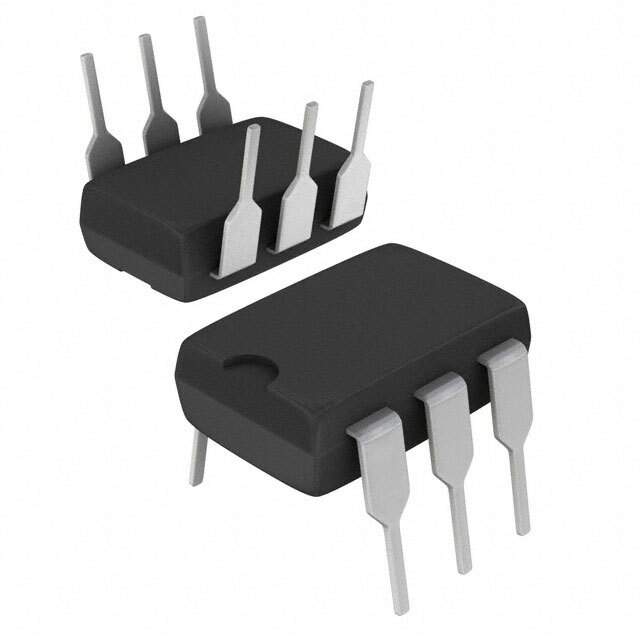

The SFH601-2 is a high isolation voltage single channel optocoupler from Vishay Semiconductor. This optocoupler is designed to provide electrical isolation between two circuits, preventing unwanted current flow while allowing signals to pass. It is commonly used in industrial control systems, power supplies, and other applications where electrical isolation is critical for safety and performance.

Applications:

• Industrial Control Systems: Used to isolate sensitive control circuitry from high-voltage power circuits.
• Power Supplies: Provides isolation between the primary and secondary sides of power supplies for safety.
• Motor Control: Isolates the control signals from the motor drive circuitry to protect sensitive components.
• Data Transmission: Used in data transmission systems to prevent ground loops and interference.
• Medical Equipment: Provides electrical isolation to protect patients and operators from electrical hazards.

Features:

• High Isolation Voltage: Provides a high level of electrical isolation between input and output.
• CTR (Current Transfer Ratio): Offers a specified current transfer ratio for efficient signal transfer.
• High Collector-Emitter Voltage: Supports high voltage operation on the output side.
• Compact Package: Small DIP package for easy integration into circuit boards.
• RoHS Compliant: Compliant with RoHS standards, ensuring environmental safety.

Benefits:

• Enhanced Safety: Protects sensitive circuitry and personnel from high-voltage hazards.
• Improved Performance: Prevents ground loops and interference in signal transmission.
• Reliable Operation: Ensures stable and consistent signal transfer.
• Easy Integration: Simplifies the design and manufacturing process.
• Compact Design: Allows for use in space-constrained applications.

Technical Specifications:

The SFH601-2 features a high isolation voltage typically rated at 5.3 kV. It has a forward current of approximately 60 mA and a collector-emitter voltage of around 70 V. The CTR is specified for a particular range, ensuring efficient signal transfer. The package is a standard DIP (Dual In-Line Package) designed for easy mounting on a PCB. The optocoupler is compliant with RoHS standards, ensuring environmental safety.
