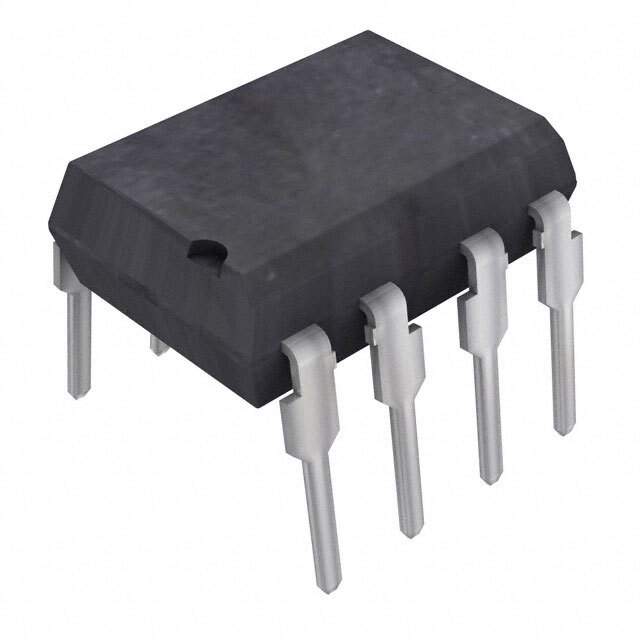

SFH6345-X001 Real Image
Same model may have multiple batches, images only for reference.

SFH6345-X001

Part No SFH6345-X001
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Analog High Speed Coupler, High Noise Immunity, 1 MBd, 15 kV/us
Datasheet
SFH6345-X001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Minimum) 19% @ 16mA
Turn On / Turn Off Time (Typ) 300ns, 300ns
Input Type DC
Output Type Transistor
Output Voltage MAX 25V
Output Current per Channel 8mA
Voltage - Forward (Vf) (Typ) 1.33V
Current - DC Forward (If) (Maximum) 25mA
Vce Saturation (Maximum) 400mV
Operating Temperature Range -55°C ~ 100°C
Mounting Style Through Hole
Package 8-DIP (0.300", 7.62mm)
Manufacturer Package 8-DIP
Win Source Part Number 1248126-SFH6345-X001
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name SFH6345
Introduction Date September 12, 2001
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian SFH6345-X001 CAD Model

Description

The Vishay Semiconductor Opto Division SFH6345-X001 is a transistor output optocoupler that is designed for use in DC input applications.

  • Voltage Isolation: 5300Vrms
  • Output Voltage Maximum: 25V
  • Package: 8-DIP
  • Rise/Fall Time: 300ns
  • Manufacturer Homepage: www.vishay.com
  • Supply Status: Limited
  • Application: Isolator
