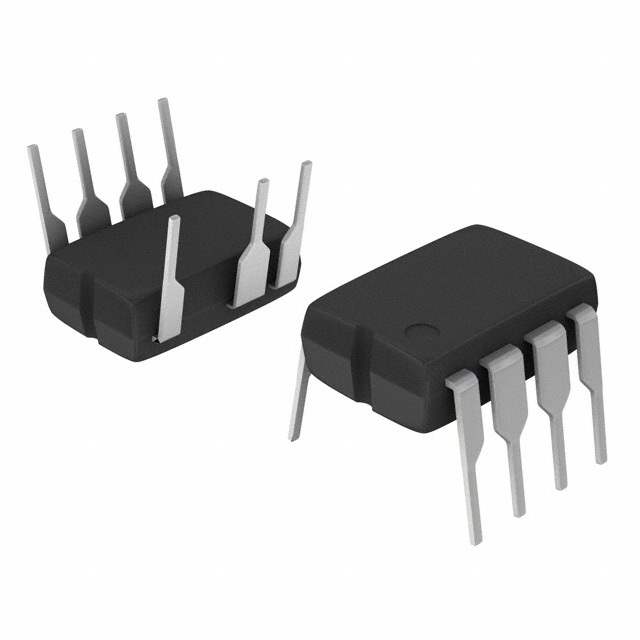

The Vishay 665446-SFH6701 is an optoisolator with a logic output.

• It belongs to: the isolators category and is designed for through-hole mounting.
• This optoisolator has: a push-pull, totem pole output type and operates with a DC input.
• It has: a maximum forward current (If) of 10mA and a typical forward voltage (Vf) of 1.6V.
• The rise/fall time is: 40ns and 10ns respectively.
• With: a current output of 25mA and a voltage isolation of 5300Vrms, this optoisolator is suitable for applications that require high voltage isolation.
• It has: a common mode transient immunity of 1kV/μs and a propagation delay of 300ns for both low-to-high and high-to-low transitions.
• The Vishay 665446-SFH6701 operates in: a voltage supply range of 4.5V to 15V and has a temperature range of -40°C to 85°C.
• It is: supplied in a tube package and is an obsolete product from Vishay.
