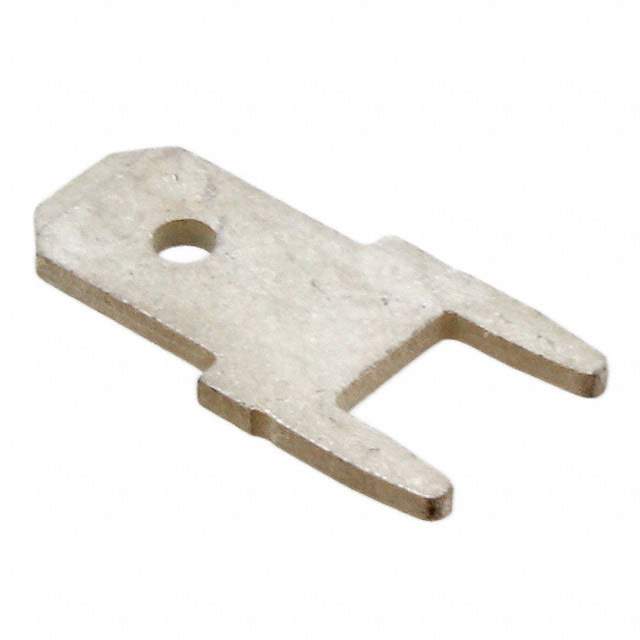

0197084013 Real Image1 0197084013 Real Image2
Same model may have multiple batches, images only for reference.
0197084013 Real Image1 0197084013 Real Image2
0197084013 Real Image1 0197084013 Real Image2
Same model may have multiple batches, images only for reference.

0197084013

Part No 0197084013
Manufacturer Molex, LLC
Catalog Terminals
Description CONN QC TAB 0.187 SOLDER / 0.187" (4.75mm) Quick Connect Male Solder Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Mfr Molex, LLC
Series 19708
Package Tape & Reel
Terminal Type Standard
Gender Male
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.255" (6.48mm)
Length - Overall 0.510" (12.95mm)
Termination Solder
Wire Gauge -
Insulation Non-Insulated
Mounting Type Through Hole
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter -
Base Product Number 019708
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 10,000 pcs
Win Source Part Number 1380609-0197084013
Ultra Librarian 3D Model Ultra Librarian 0197084013 CAD Model

Description

The 1380609-0197084013 is a male quick disconnect connector from the 19708 series by Molex, LLC.

  • Termination: Solder
  • Contact Finish: Tin
  • Overall Length: 0.510 inches (12.95mm)
  • Tab Width: 0.187 inches (4.75mm)
  • Insulation: Non-Insulated
  • Tab Thickness: 0.032 inches (0.81mm)
  • Tab Length: 0.255 inches (6.48mm)
  • Mounting: Through Hole
  • Package: Tape & Reel
  • Contact Material: Brass
  • Terminal Type: Standard
  • Standard Package: 10,000 pieces
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.90.4000
