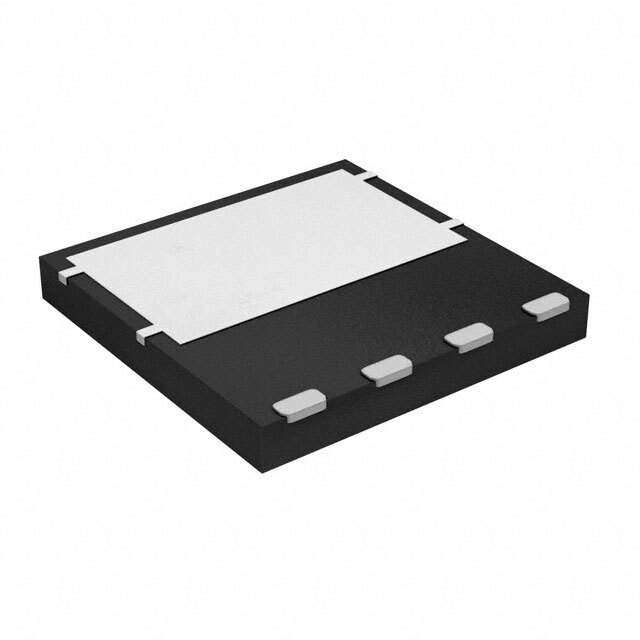

SIHH24N65EF-T1-GE3 Real Image
Same model may have multiple batches, images only for reference.

SIHH24N65EF-T1-GE3

Part No SIHH24N65EF-T1-GE3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Datasheet
SIHH24N65EF-T1-GE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Vishay Siliconix
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 650 V
Current - Continuous Drain (Id) @ 25°C 23A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 158mOhm @ 12A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 17 nC @ 10 V
Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 2780 pF @ 100 V
Power Dissipation (Max) 202W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PowerPAK® 8 x 8
Package / Case 8-PowerTDFN
Base Product Number SIHH24
Other Names SIHH24N65EF-T1-GE3DKR,SIHH24N65EF-T1-GE3TR,SIHH24N65EF-T1-GE3CT
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1277926-SIHH24N65EF-T1-GE3
Ultra Librarian 3D Model Ultra Librarian SIHH24N65EF-T1-GE3 CAD Model

Description

The SIHH24N65EF-T1-GE3 is an N-Channel MOSFET transistor that belongs to the discrete semiconductor products category of FETs and MOSFETs.

  • Drain to Source Voltage (Vdss): 650V
  • Continuous Drain Current (Id): 23A (Tc)
  • Rds On (Max) @ Id, Vgs: 158mOhm @ 12A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250μA
  • Power Dissipation (Max): 202W (Tc)
  • Gate Charge (Qg) (Max) @ Vgs: 17 nC @ 10V
  • Input Capacitance (Ciss) (Max) @ Vds: 2780 pF @ 100V
  • Vgs (Max): ±30V
  • Package: 8-PowerTDFN package
  • Supplier Device Package: PowerPAK® 8 x 8
  • Operating Temperature Range: -55°C ~ 150°C (TJ)
  • ECCN: EAR99
  • Alternative part: SIHH24
