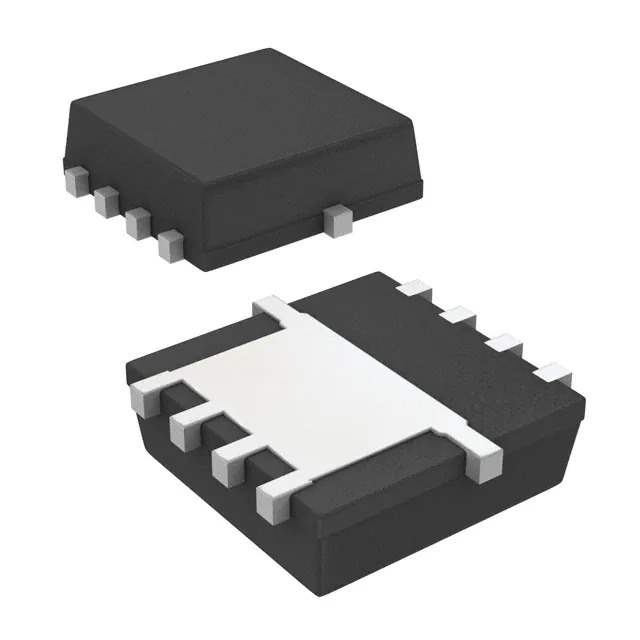

SIS782DN-T1-GE3

Name: SIS782DN-T1-GE3
Brand: Vishay
SKU: 667346
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SIS782DN-T1-GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 16A PPAK1212-8
Datasheet	SIS782DN-T1-GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Vishay
Package	Tape & Reel
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	9.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	30.5 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1025 pF @ 15 V
FET Feature	Schottky Diode (Body)
Power Dissipation (Max)	41W (Tc)
Temperature Range - Operating	-50°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® 1212-8
Package / Case	PowerPAK® 1212-8
Base Product Number	SIS782
Standard Package	3,000 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	667346-SIS782DN-T1-GE3
Ultra Librarian 3D Model	Ultra Librarian SIS782DN-T1-GE3 CAD Model

Alternative Products

Description

The SIS782DN-T1-GE3 is an N-channel MOSFET transistor with a built-in Schottky diode from Vishay.

Manufacturer: Vishay
Channel Type: N-channel
Mounting Type: Surface Mount
Package: Tape and Reel
Standard Package Quantity: 3,000 pcs
Drain-to-Source Voltage (Vdss): 30V
Continuous Drain Current (Id) @ 25°C: 16A
On-Resistance (Rds On) @ 10A, 10V: 9.5mOhm
Gate Threshold Voltage (Vgs(th)) @ 250µA: 2.3V
Power Dissipation: 41W
