Same model may have multiple batches, images only for reference.

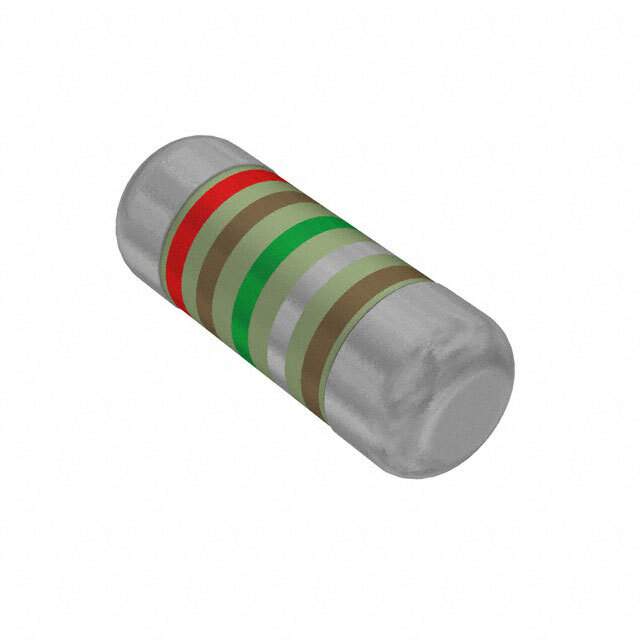

SMM02040C2158FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C2158FB300

Part No SMM02040C2158FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 2.15 OHM 1% 1/4W MELF 0204
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Beyschlag
Packaging Reel
Resistance 2.15 Ohms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Manufacturer Package MELF, 0204
Supplier Device Package Mini MELF
Dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Number of Terminations 2
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807674-SMM02040C2158FB300
Ultra Librarian 3D Model Ultra Librarian SMM02040C2158FB300 CAD Model

Description

The Vishay Beyschlag 807674-SMM02040C2158FB300 is a thin film resistor with a resistance of 2.15 Ohms and a power rating of 0.25W.

  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Package: Mini MELF
  • Applications: Automotive (anti-sulfur, pulse-withstanding)
  • Operating Temperature Range: -55°C to 125°C
  • Series: MELF 0204
  • Packaging: Reel
  • Pack Quantity: 3,000
  • Supply and Demand Status: Balanced
