Same model may have multiple batches, images only for reference.

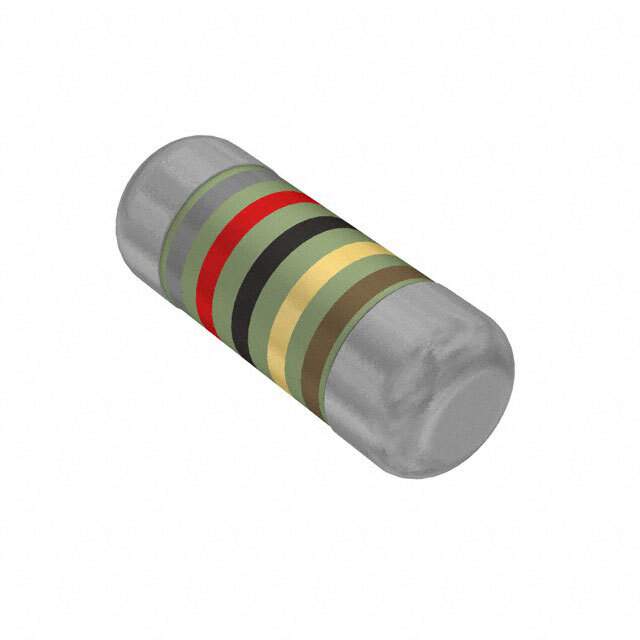

SMM02040C8209FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C8209FB300

Part No SMM02040C8209FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 82 OHM 1% 1/4W MELF 0204 / 82 Ohms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Datasheet
SMM02040C8209FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series SMM0204
Package Tape & Reel
Resistance 82 Ohms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case MELF, 0204
Supplier Device Package Mini MELF
Ratings AEC-Q200
Size / Dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Number of Terminations 2
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Win Source Part Number 1349555-SMM02040C8209FB300
Ultra Librarian 3D Model Ultra Librarian SMM02040C8209FB300 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components SMM0204 chip resistor is an ideal component for electronic circuits that require an 82 Ohms resistance with a tolerance of ±1%.

  • Resistance: 82 Ohms
  • Tolerance: ±1%
  • Power (Watts): 0.25W
  • Composition: Thin Film
  • Packaging: Tape & Reel (TR)
  • Package / Case: MELF, 0204
  • Size / Dimension: 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
  • Supplier Device Package: mini MELF
  • Operating Temperature: -55°C ~ 125°C
  • Ratings: AEC-Q200
  • ECCN: EAR99
  • HTSUS: 8533.21.0040
