Same model may have multiple batches, images only for reference.

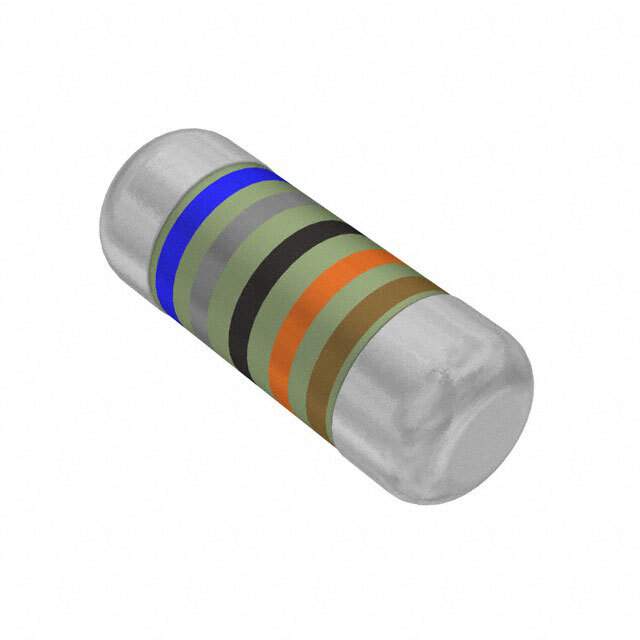

SMM02070C6803FBP00 Real Image
Same model may have multiple batches, images only for reference.

SMM02070C6803FBP00

Part No SMM02070C6803FBP00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 680K OHM 1% 1W MELF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay Beyschlag
Packaging Tape and Reel
Resistance 680 kOhms
Tolerance ±1%
Power (W) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package MELF, 0207
Supplier Device Package MELF
Parts Dimension 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Number of Terminations 2
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Win Source Part Number 716298-SMM02070C6803FBP00
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMM02070C6803FBP00 CAD Model

Description

The Vishay Beyschlag 716298-SMM02070C6803FBP00 is a low-popularity resistor with a resistance of 680 kOhms and a tolerance of ±1%.

  • Composition: thin film
  • Temperature coefficient: ±50ppm/°C
  • Supplier Device Package: MELF
  • Manufacturer Package: MELF, 0207
  • Features: anti-sulfur, automotive AEC-Q200, and pulse withstanding capabilities
  • Manufacturer Pack Quantity: 1,500
  • MSL Level: 1 (Unlimited)
  • Suitability: suitable for use in various electronic devices
