Same model may have multiple batches, images only for reference.

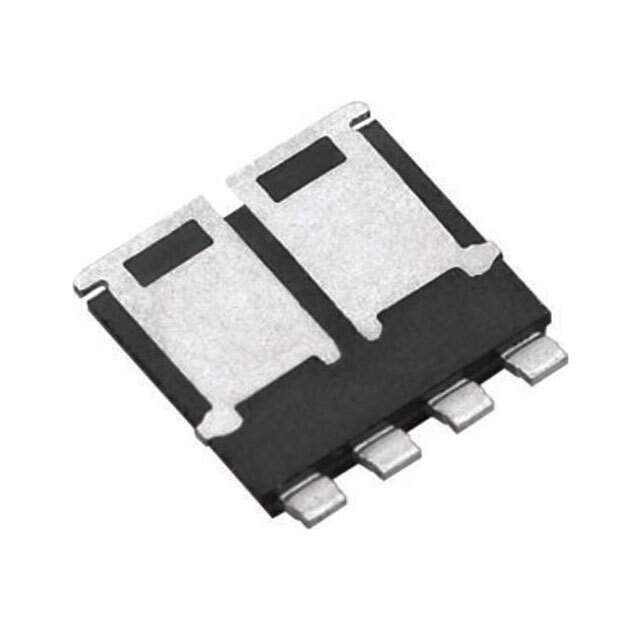

SQJQ906EL-T1_GE3 Real Image
Same model may have multiple batches, images only for reference.

SQJQ906EL-T1_GE3

Part No SQJQ906EL-T1_GE3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Datasheet
SQJQ906EL-T1_GE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Arrays
Mfr Vishay Siliconix
Series Automotive, AEC-Q101, TrenchFET®
Package Tape & Reel
FET Type 2 N-Channel (Dual)
FET Feature Standard
Drain to Source Voltage (Vdss) 40V
Current - Continuous Drain (Id) @ 25°C 160A (Tc)
Rds On (Max) @ Id, Vgs 4.3mOhm @ 5A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 45nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 3238pF @ 20V
Power - Max 187W
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case PowerPAK® 8 x 8 Dual
Supplier Device Package PowerPAK® 8 x 8 Dual
Base Product Number SQJQ906
Other Names SQJQ906EL-T1_GE3CT,SQJQ906EL-T1_GE3DKR,SQJQ906EL-T1_GE3TR
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1278523-SQJQ906EL-T1_GE3
Ultra Librarian 3D Model Ultra Librarian SQJQ906EL-T1_GE3 CAD Model

Description

The SQJQ906EL-T1_GE3 is a 2 N-Channel Dual FET with a standard feature.

  • Drain to Source Voltage: 40V
  • Continuous Drain: 160A @ 25°C
  • Rds On (Max) @ Id, Vgs: 4.3mOhm @ 5A, 10V
  • Gate Charge (Qg) (Max) @ Vgs: 45nC @ 10V
  • Input Capacitance (Ciss) (Max) @ Vds: 3238pF @ 20V
  • Package: PowerPAK® 8 x 8 Dual
  • Temperature Range: -55°C ~ 175°C (TJ)
  • Series: Automotive, AEC-Q101, TrenchFET® series
  • Applications: Transistors - FETs, MOSFETs - Arrays
