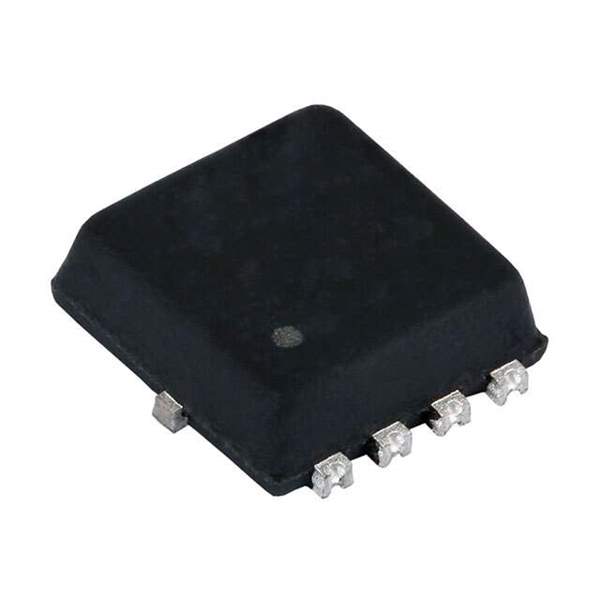

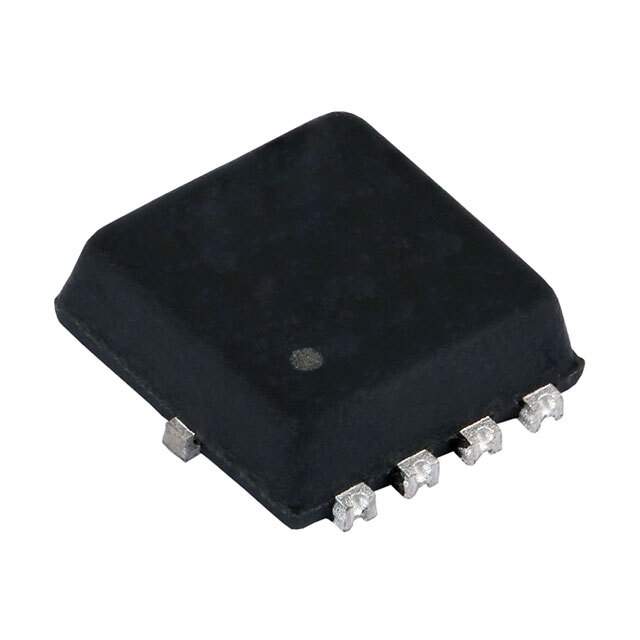

The Vishay Siliconix SQS486CENW-T1_GE3 is an N-channel MOSFET designed for use in automotive applications.

• Manufacturer: Vishay Siliconix
• MOSFET Type: N-Channel
• Application: Automotive
• Drain to Source Voltage (Vdss): 40 V
• Power Dissipation (Max): 62.5W (Tc)
• Mounting Type: Surface Mount
• Package: Tape & Reel
• Package/Case: PowerPAK® 1212-8W
• Supplier Device Package: PowerPAK® 1212-8W
• Vgs (Max): ±20V
• Temperature Range: -55°C ~ 175°C (TJ)
• Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
• Current - Continuous Drain (Id) @ 25°C: 18A (Tc)
• Rds On (Max) @ Id, Vgs: 5.1mOhm @ 10A, 10V
• Vgs(th) (Max) @ Id: 2.2V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs: 53 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 2950 pF @ 25 V
