Same model may have multiple batches, images only for reference.

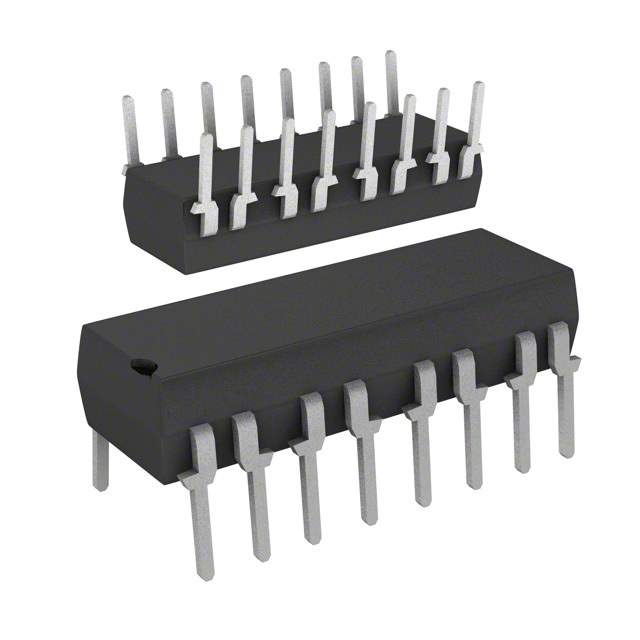

TCET4600G Real Image
Same model may have multiple batches, images only for reference.

TCET4600G

Part No TCET4600G
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV 4CH TRANS 16DIP / Optocoupler AC-IN 4-CH Transistor DC-OUT 16-Pin DIL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Number of Channels 4
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Minimum) 20% @ 5mA
Current Transfer Ratio (Maximum) 300% @ 5mA
Turn On / Turn Off Time (Typ) 6μs, 5μs
Rise / Fall Time (Typ) 3μs, 4.7μs
Input Type AC, DC
Output Type Transistor
Output Voltage MAX 70V
Output Current per Channel 50mA
Voltage - Forward (Vf) (Typ) 1.25V
Current - DC Forward (If) (Maximum) 60mA
Vce Saturation (Maximum) 300mV
Operating Temperature Range -55°C ~ 100°C
Mounting Style Through Hole
Package 16-DIP (0.400", 10.16mm)
Manufacturer Package 16-DIP
Win Source Part Number 796499-TCET4600G
Popularity Medium
Supply and Demand Status Limited
Family Name TCET4600
Introduction Date March 25, 1999
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian TCET4600G CAD Model

Description

The TCET4600G is a quad-channel optocoupler from Vishay Semiconductor Opto Division.

  • Output Voltage (Maximum): 70V
  • Output Current: 50mA (per channel)
  • Package: 16-DIP
  • Operating Temperature: -55°C to 100°C
  • Current Transfer Ratio: Up to 300% @ 5mA
  • Rise/Fall Time: 3μs / 4.7μs
  • Turn On/Turn Off Time: 6μs / 5μs
