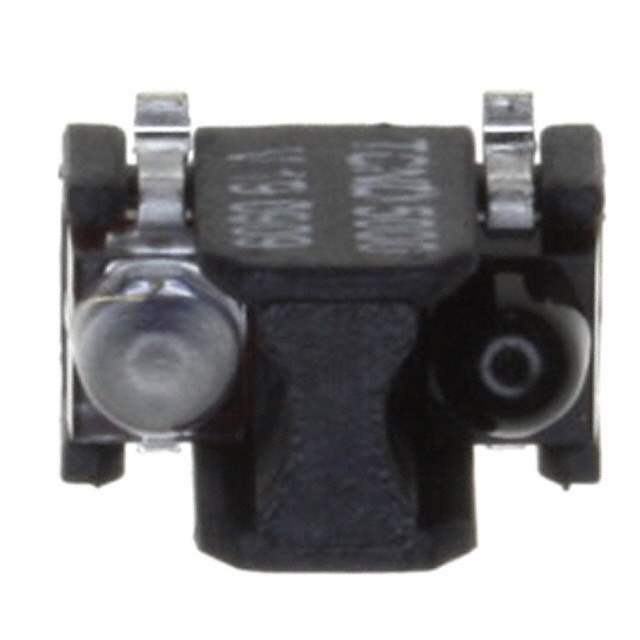

TCND5000 Real Image
Same model may have multiple batches, images only for reference.

TCND5000

Part No TCND5000
Manufacturer Vishay
Catalog Optical Sensors - Reflective - Analog Output
Description Photointerrupter Reflective Photodiode 4-Pin SMD T/R / SENSOR REFLECTIVE PIN 940NM SMD
Datasheet
TCND5000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
Sensing Distance 0.079" to 0.984" (2mm to 25mm) ADJ
Sensing Method Reflective
Continuous forward current- Max 100mA
Output Type PIN Photodiode
Response Time 800ns, 800ns
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 111956-TCND5000
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Sensing & Instrumentation
Family Name TCND5000
Introduction Date July 08, 2004
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian TCND5000 CAD Model

Description

The Vishay TCND5000 is a PIN photodiode that is used for reflective sensing applications.

  • Sensing Distance: 0.079" to 0.984" (2mm to 25mm) ADJ
  • Response Time: 800ns
  • Mounting Type: SMD (SMT)
  • Packaging: Reel
  • Family: TCND5000
  • Status: active
  • Popularity: high
  • Supply and Demand Status: balanced
  • Operating Temperature: -40°C to 85°C
  • Continuous Forward Current: 100mA
  • ECCN: EAR99
