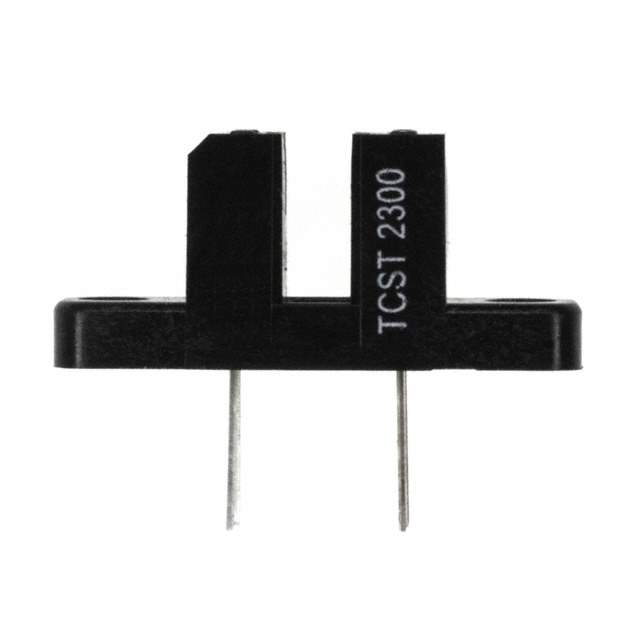

TCST2300 Real Image
Same model may have multiple batches, images only for reference.

TCST2300

Part No TCST2300
Manufacturer Vishay
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description SENSR OPTO SLOT 3.1MM TRANS THRU
Datasheet
TCST2300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Sensing Distance 0.122" (3.1mm)
Sensing Method Transmissive
Continuous forward current- Max 60mA
Maximum Current Collector 200mA
VCEO Maximum Collector-Emitter Breakdown Voltage 70V
Response Time 10μs, 8μs
Temperature Range - Operating -55°C to 85°C
Mounting Through Hole
Type Unamplified
Win Source Part Number 1106458-TCST2300
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Communications & Networking, Commercial, Industrial, Lighting, Power Management
Ultra Librarian 3D Model Ultra Librarian TCST2300 CAD Model

Description

The Vishay TCST2300 is an unamplified type electronic component that is used in various applications such as communications & networking, commercial, industrial, lighting, and power management.

  • Mounting: Through a hole
  • Sensing Method: Transmissive
  • Sensing Distance: 0.122 inches (3.1mm)
  • Response Time: 10μs, 8μs
  • Maximum Current Collector: 200mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 70V
  • Continuous Forward Current- Max: 60mA
  • Category: Sensors, transducers
  • Operating Temperature Range: -55°C and 85°C
  • Supply and Demand Status: Balanced
