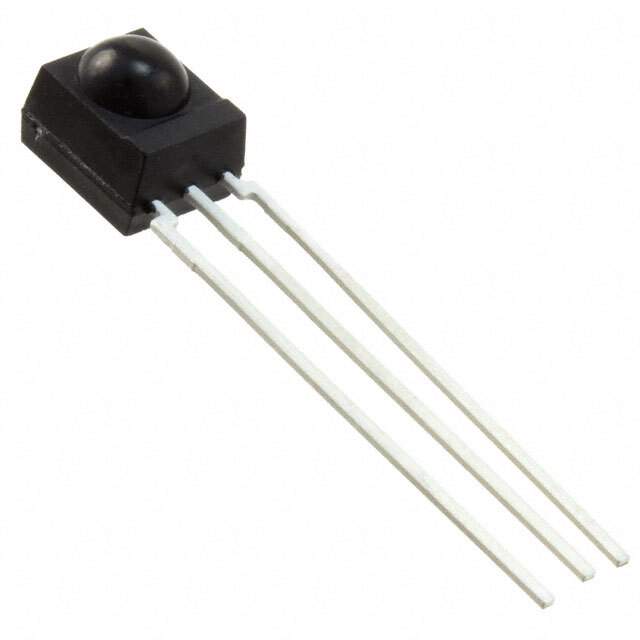

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Sensing Distance 45m
B.P.F. Center Frequency 33.0kHz
Operating Supply Voltage 2.5 V ~ 5.5 V
Operating Supply Current 0.7mA
Orientation Side View
Mounting Style Through Hole
Operating Temperature Range -25°C ~ 85°C (TA)
Win Source Part Number 1274834-TSOP2233
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name TSOP2233
Introduction Date March 30, 2001
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian TSOP2233 CAD Model

Description

The Vishay Semiconductor Opto Division TSOP2233 is a through-hole mounted side view sensor that operates between -25°C to 85°C.

  • Supply and Demand Status: Limited
  • Ideal For: Use in remote control systems, particularly in televisions, VCRs, and home theater systems
  • Sensing Distance: 45m
  • B.P.F. Center Frequency: 33.0kHz
  • Operating Supply Voltage: 2.5 V to 5.5 V
  • Operating Supply Current: 0.7mA
  • Manufacturer: Vishay Semiconductor Opto Division
