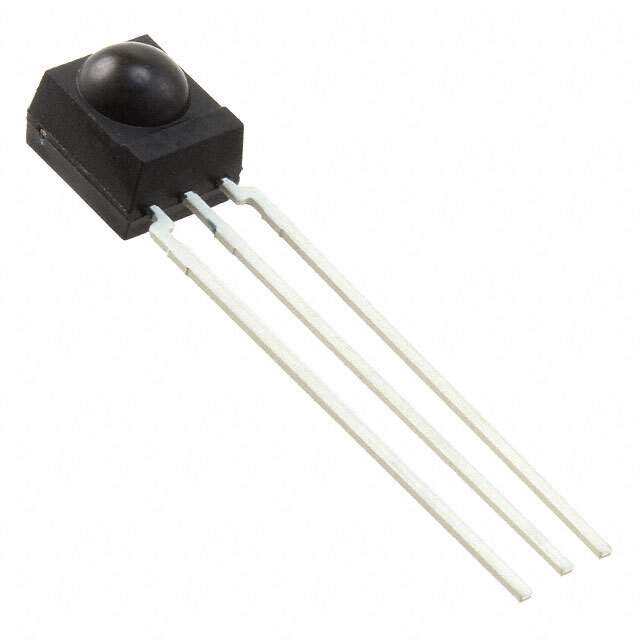

TSOP2436 Real Image
Same model may have multiple batches, images only for reference.

TSOP2436

Part No TSOP2436
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description IC IR RCVR MODULE 36KHZ
Datasheet
TSOP2436 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Sensing Distance 45m
Carrier Frequency 36.0kHz
Supply Voltage - Operating 2.5 V to 5.5 V
Operating Supply Current 0.7mA
Orientation Side View
Mounting Through Hole
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 043368-TSOP2436
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSOP2436 CAD Model

Description

This sensor/transducer is manufactured by Vishay and has a sensing distance of 45m.

  • Orientation: side view
  • Mounting Type: through hole
  • Operating Temperature Range: from -25°C to 85°C (TA)
  • Operating Supply Voltage: 2.5V to 5.5V
  • Carrier Frequency: 36.0kHz
