Same model may have multiple batches, images only for reference.

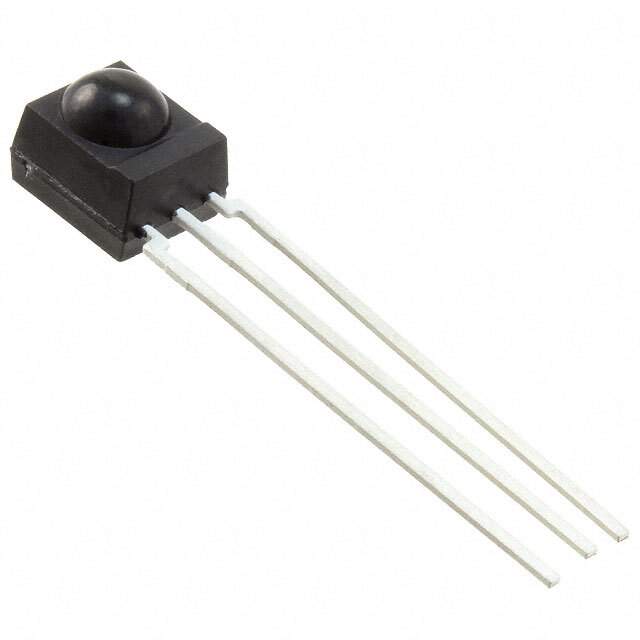

TSOP32336 Real Image
Same model may have multiple batches, images only for reference.

TSOP32336

Part No TSOP32336
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description MOD IR RCVR 36KHZ SIDE VIEW
Datasheet
TSOP32336 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Bulk
Status Active
Sensing Distance 45m
Carrier Frequency 36.0kHz
Supply Voltage - Operating 2.5 V to 5.5 V
Operating Supply Current 350μA
Orientation Side View
Mounting Through Hole
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 1114765-TSOP32336
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TSOP32336 CAD Model

Description

The TSOP32336 is a sensor from Vishay.

  • Mounting Style: Through-hole
  • Sensing Distance: 45m
  • Category: Sensor
  • Temperature Range: -25°C to 85°C (TA)
  • Supply Voltage - Operating: 2.5 V to 5.5 V
  • Operating Supply Current: 350μA
  • Carrier Frequency: 36.0kHz
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
