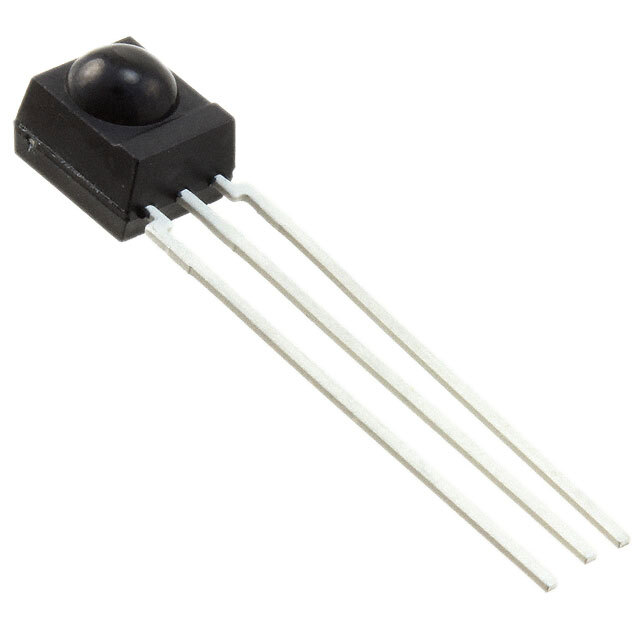

The TSOP34136SB1 is a Vishay IR receiver module designed for infrared remote control systems. This component integrates a photodiode, a preamplifier, and an IR filter into a single molded package. This device is designed to receive IR signals modulated at a carrier frequency of 36 kHz.

Applications

• Infrared remote control systems
• Televisions (TVs), DVD players, and set-top boxes (STBs)
• Audio equipment and home appliances

Features

• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Low supply current
• TTL and CMOS compatibility
• Supply voltage: 2.5 V to 5.5 V
• Carrier frequency: 36 kHz

Benefits

• Easy to use: Requires minimal external components
• Reliable performance
• Cost-effective solution

Additional Details

The TSOP34136SB1 operates with a supply voltage ranging from 2.5 V to 5.5 V. The output is active low. The internal filter is designed to suppress noise and unwanted IR signals to ensure reliable operation. It is RoHS compliant.
