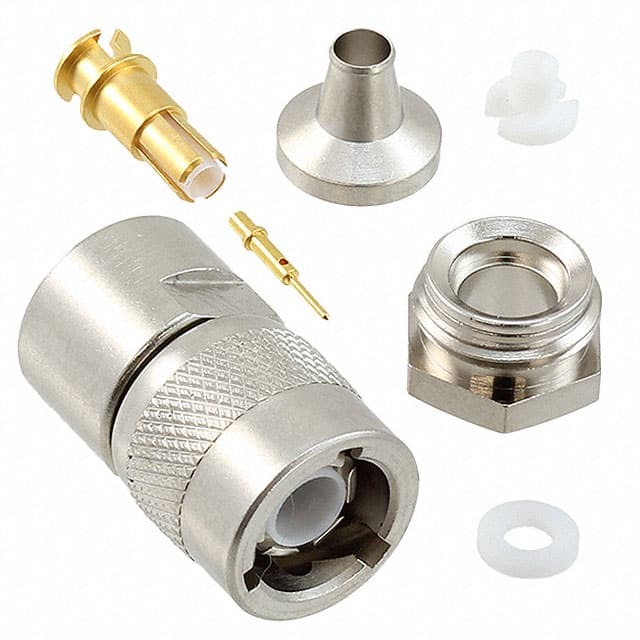

Same model may have multiple batches, images only for reference.
PL155-32 Cinch Connectivity Solutions
Same model may have multiple batches, images only for reference.

PL155-32

Part No PL155-32
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Datasheet
PL155-32 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Cinch Connectivity Solutions Trompeter
Series 150
Package Bulk
Connector Style TRS, Twinaxial/Triaxial
Connector Type Plug, Male Pin (Concentric)
Contact Termination Solder
Shield Termination Wrench Clamp
Impedance Non-Constant
Mounting Type Free Hanging (In-Line)
Cable Group TRC-50-1
Fastening Type Bayonet Lock
Frequency - Max 500 MHz
Number of Ports 1
Features Three Lug
Housing Color Silver
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Temperature Range - Operating -65°C ~ 200°C
Voltage Rating 400 V
Mating Cycles 500
Base Product Number PL155
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1316171-PL155-32
Ultra Librarian 3D Model Ultra Librarian PL155-32 CAD Model

Description

The Cinch Connectivity Solutions Trompeter PL155-32 Connector is a high-quality coaxial connector that is designed to provide excellent performance.

  • Series: 150
  • Design: Three-lug
  • Type: Plug, male pin (concentric)
  • Fastening Type: Bayonet lock
  • Material: Brass
  • Housing Color: Silver
  • Status: Active
  • Popularity: Medium
  • Supply and Demand: Balanced
