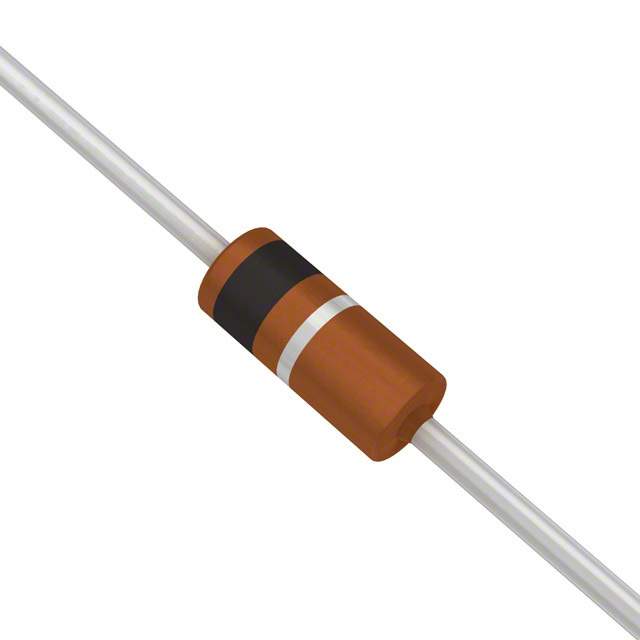

TZX20A-TAP

Name: TZX20A-TAP
Brand: Vishay
SKU: 1121414
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TZX20A-TAP
Manufacturer	Vishay
Catalog	Diodes - Zener - Single
Description	DIODE ZENER 20V 500MW DO35 / Zener Diode 20 V 500 mW Through Hole DO-35 (DO-204AH)
Datasheet	TZX20A-TAP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Zener - Single
Mfr	Vishay General Semiconductor - Diodes Division
Series	Automotive, AEC-Q101, TZX
Package	Cut Tape (CT),Tape & Box (TB)
Voltage - Zener (Nom) (Vz)	20 V
Power - Max	500 mW
Impedance (Max) (Zzt)	60 Ohms
Current - Reverse Leakage @ Vr	1 µA @ 15 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA
Temperature Range - Operating	-65°C ~ 175°C
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Supplier Device Package	DO-35 (DO-204AH)
Base Product Number	TZX20
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0050
Other Names	TZX20A-TAPGICT,TZX20A-TAPGITB,TZX20A-TAP-ND
Standard Package	10,000
Win Source Part Number	1121414-TZX20A-TAP
Ultra Librarian 3D Model	Ultra Librarian TZX20A-TAP CAD Model

Alternative Products

Description

The Vishay General Semiconductor - Diodes Division TZX20A-TAP is a zener diode that has a voltage rating of 20V and a maximum power of 500 mW.

Reverse Leakage Current: 1 µA @ 15 V
Forward Voltage: 1.5 V @ 200 mA
Impedance: 60 Ohms
Mounting Type: Through-hole
Package: DO-204AH, DO-35, Axial
Supplier Device Package: DO-35 (DO-204AH)
Temperature Range: -65°C to 175°C
Standard Package: 10,000
