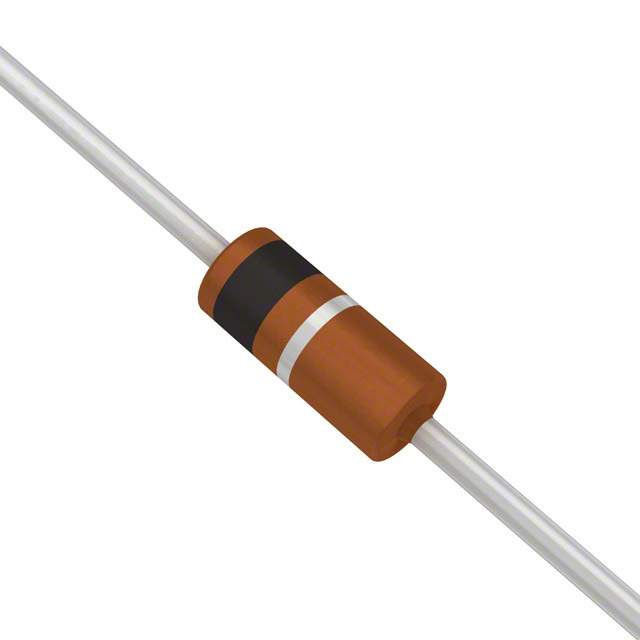

TZX20B-TAP

Part No TZX20B-TAP
Manufacturer Vishay
Catalog Diodes - Zener - Single
Description DIODE ZENER 20V 500MW DO35
Datasheet
TZX20B-TAP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging AMMO PACKAGE
Status Active
Voltage - Zener (Nom) (Vz) 20V
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 60 Ohm
Current - Reverse Leakage @ Vr 1μA @ 15V
Voltage - Forward (Vf) (Max) @ If 1.5V @ 200mA
Temperature Range - Operating -65°C to 175°C
Mounting Through Hole
Case / Package DO-35
Win Source Part Number 057243-TZX20B-TAP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TZX20B-TAP CAD Model

Description

The Vishay 057243-TZX20B-TAP is a through-hole zener diode that can be used in a variety of discrete semiconductor products.

  • Voltage Tolerance: -
  • Forward Voltage: 1.5V @ 200mA
  • Reverse Leakage Current: 1μA @ 15V
  • Zener Voltage: 20V
  • Maximum Impedance: 60 Ohm
  • Maximum Power Dissipation: 500mW
  • Operating Temperature Range: -65°C to 175°C
  • Package: Ammo package
  • Popularity: Medium
