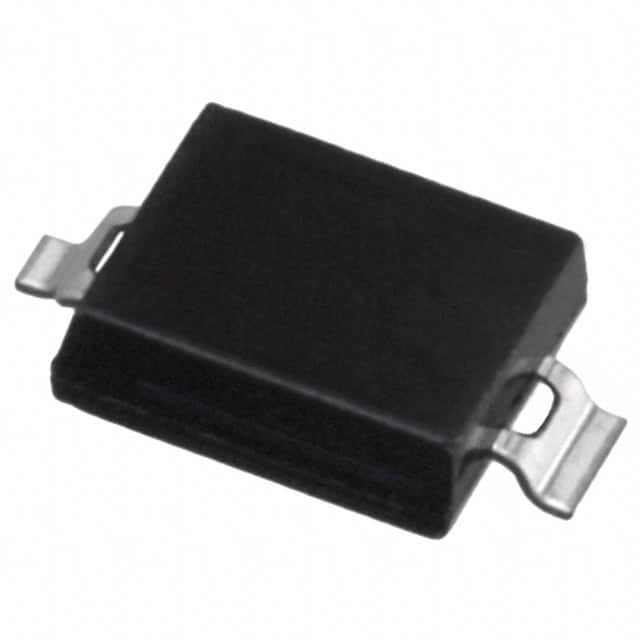

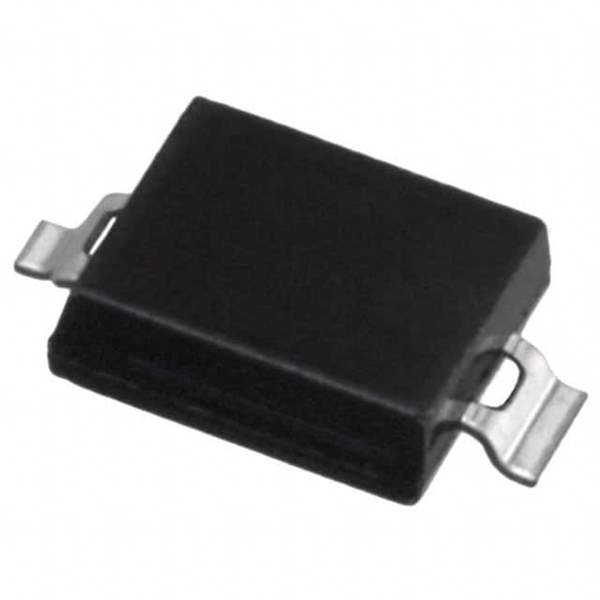

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photodiodes
Mfr Vishay
Package Tape & Reel
Product Status Active
Wavelength 950nm
Spectral Range 780nm ~ 1050nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Dark (Typ) 2nA
Active Area 4.4mm2
Viewing Angle 130°
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Surface Mount
Package / Case 2-SMD, Gull Wing
Base Product Number VBP104
Standard Package 1,000 pcs
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 902493-VBP104FAS
Ultra Librarian 3D Model Ultra Librarian VBP104FAS CAD Model

Description

The VBP104FAS is a photodiode optical sensor from Vishay.

  • Application: Optical sensing
  • Response Time: 100ns
  • Maximum Reverse Voltage: 60V
  • Viewing Angle: 130°
  • Wavelength Range: 780nm to 1050nm
  • Dark Current: 2nA
  • Active Area: 4.4mm2
  • Mounting: Surface mount
  • Package: Tape and reel
  • Standard Package Quantity: 1,000 pcs
