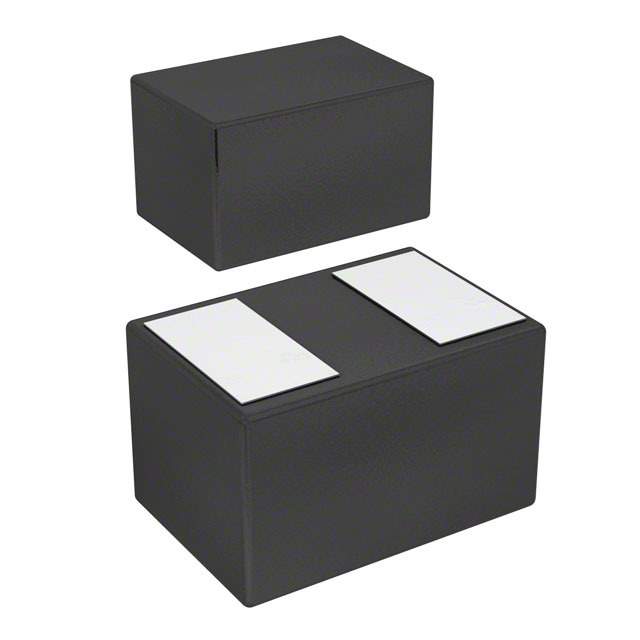

VCUT10A1-SD0-G4-08 Real Image
Same model may have multiple batches, images only for reference.

VCUT10A1-SD0-G4-08

Part No VCUT10A1-SD0-G4-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 10VWM 18VC CLP0603 / 18V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount CLP0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 10V (Max)
Voltage - Breakdown (Min) 11V
Voltage - Clamping (Max) @ Ipp 18V
Current - Peak Pulse (10/1000µs) 4A (8/20µs)
Power - Peak Pulse 72W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 7.7pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package CLP0603
Base Product Number VCUT10
Standard Package 15,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1350541-VCUT10A1-SD0-G4-08
Ultra Librarian 3D Model Ultra Librarian VCUT10A1-SD0-G4-08 CAD Model

Description

The VCUT10 series from Vishay General Semiconductor - Diodes Division is a Zener type of TVS diode.

  • Type: Zener TVS Diode
  • Channel: Bidirectional
  • Voltage Reverse Standoff (Max): 10V
  • Voltage Breakdown: 11V
  • Voltage Clamping (Max) @ Ipp: 18V
  • Power Peak Pulse: 72W
  • Power Line Protection: No
  • Capacitance @ Frequency: 7.7pF @ 1MHz
  • Current Peak Pulse (10/1000µs): 4A (8/20μs)
  • Mounting Type: Surface Mount
  • Package: 0201 (0603 Metric)
  • Application: General Purpose
  • Standard Package: 15,000
  • Temperature Range: -55°C to 150°C (TJ)
