Same model may have multiple batches, images only for reference.

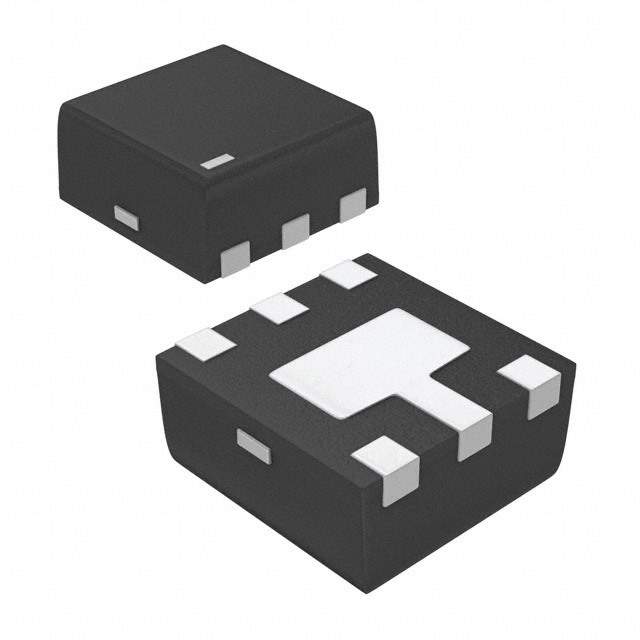

VEMI255A-HS3-GS08 Real Image
Same model may have multiple batches, images only for reference.

VEMI255A-HS3-GS08

Part No VEMI255A-HS3-GS08
Manufacturer Vishay
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 50 OHM/37PF SMD
Datasheet
VEMI255A-HS3-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 2
Center / Cutoff Frequency 100MHz (Cutoff)
Resistance - Channel (Ohms) 50
Current 4A
Values R = 50 Ohms, C = 37pF
ESD Protection Yes
Temperature Range - Operating -40°C to 125°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.063" L x 0.063" W (1.60mm x 1.60mm)
Height 0.031" (0.79mm)
Win Source Part Number 1116987-VEMI255A-HS3-GS08
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VEMI255A-HS3-GS08 CAD Model

Description

This Vishay filter has an RC (Pi) technology and is designed for data lines in mobile devices.

  • Technology: RC (Pi)
  • Application: Data Lines in Mobile Devices
  • Type: SMD (SMT)
  • Height: 0.031" (0.79mm)
  • Dimension: 0.063" L x 0.063" W (1.60mm x 1.60mm)
  • Filter Order: 2nd
  • Center/Cutoff Frequency: 100MHz (cutoff)
  • Resistance: 50 ohms
  • Attenuation Value: Not Specified
  • ESD Protection: Not Specified
  • Status: Obsolete (EOL)
  • Supply and Demand: Sufficient
