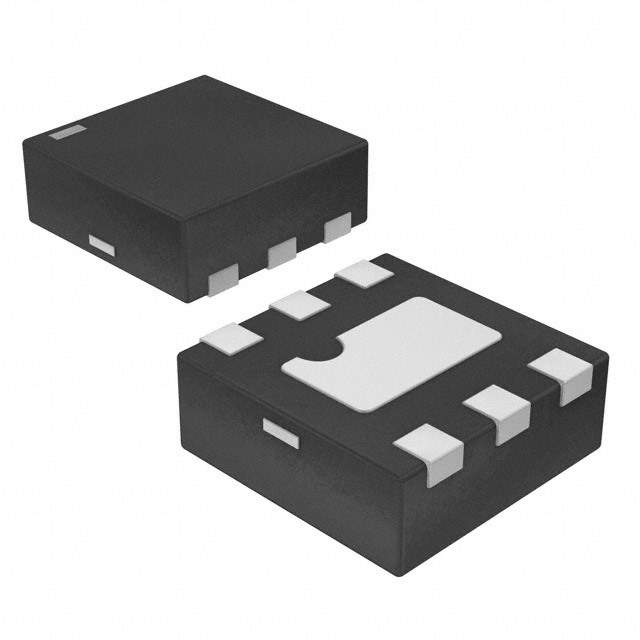

Same model may have multiple batches, images only for reference.

VEMI355A-HAF-G-08

Name: VEMI355A-HAF-G-08
Brand: Vishay
SKU: 1186578
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	VEMI355A-HAF-G-08
Manufacturer	Vishay
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	FILTER RC(PI) 50 OHM/37PF SMD / RC (Pi) EMI Filter 2nd Order Low Pass 3 Channel R = 50Ohms, C = 37pF 4 A 6-WFDFN Exposed Pad
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>EMI/RFI Filters (LC, RC Networks)
Mfr	Vishay General Semiconductor - Diodes Division
Package	Tape & Reel
Type	Low Pass
Filter Order	2nd
Technology	RC (Pi)
Number of Channels	3
Center / Cutoff Frequency	100MHz (Cutoff)
Resistance - Channel (Ohms)	50
Current	4 A
Values	R = 50Ohms, C = 37pF
ESD Protection	Yes
Temperature Range - Operating	-40°C ~ 125°C
Applications	Data Lines for Mobile Devices
Mounting	SMD (SMT)
Package / Case	6-WFDFN Exposed Pad
Dimension	0.063" L x 0.063" W (1.60mm x 1.60mm)
Height	0.031" (0.79mm)
Base Product Number	VEMI355
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Other Names	112-VEMI355A-HAF-G-08DKR,VEMI355A-HAF-G-08-ND,112-VEMI355A-HAF-G-08TR,112-VEMI355A-HAF-G-08CT
Standard Package	15,000
Win Source Part Number	1186578-VEMI355A-HAF-G-08
Ultra Librarian 3D Model	Ultra Librarian VEMI355A-HAF-G-08 CAD Model

Description

The VEMI355A-HAF-G-08 is a low pass filter manufactured by Vishay General Semiconductor - Diodes Division.

Current Rating: 4 A
Resistance: 50 Ohms
Ideal for: Use in data lines for mobile devices
Center/Cutoff Frequency: 100 MHz
Package: 6-WFDFN exposed pad
Packaging: Tape and reel of 15000
ECCN: EAR99
