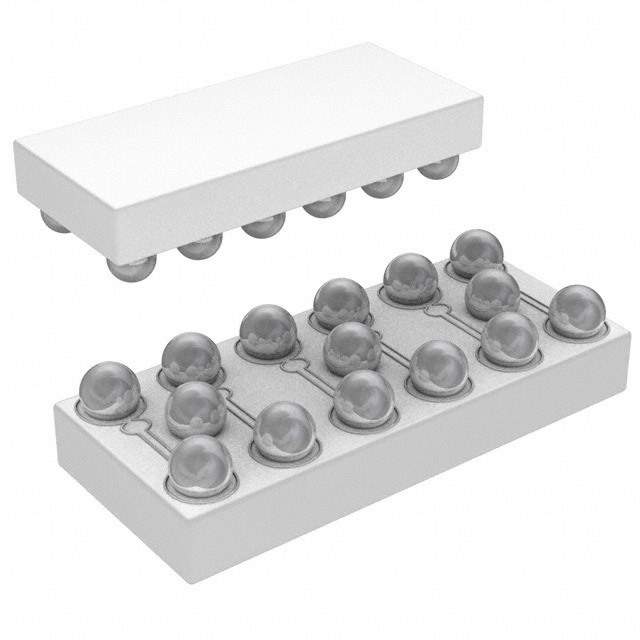

VEMI65A6-FC2 Real Image
Same model may have multiple batches, images only for reference.

VEMI65A6-FC2

Part No VEMI65A6-FC2
Manufacturer Vishay
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/90PF SMD
Datasheet
VEMI65A6-FC2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 6
Center / Cutoff Frequency 60MHz (Cutoff)
Attenuation Value 30dB @ 800MHz to 2GHz
Resistance - Channel (Ohms) 100
Current 5A
Values R = 100 Ohms, C = 90pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.117" L x 0.052" W (2.96mm x 1.33mm)
Height 0.026" (0.65mm)
Win Source Part Number 213843-VEMI65A6-FC2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VEMI65A6-FC2 CAD Model

Description

The Vishay VEMI65A6-FC2 is a low-pass filter designed for use in data lines for mobile devices.

  • Manufacturer: Vishay
  • Current Rating: 5A
  • Channels: 6
  • Attenuation Value: 30dB @ 800MHz to 2GHz
  • Filter Order: 2nd order
  • Center/Cutoff Frequency: 60MHz
  • Resistance: 100 Ohms
  • R Value: 100 Ohms
  • C Value: 90pF
  • Features: ESD protection
  • Operating Temperature Range: -40°C to 85°C
  • Package Dimension: 0.117" L x 0.052" W (2.96mm x 1.33mm)
