Same model may have multiple batches, images only for reference.

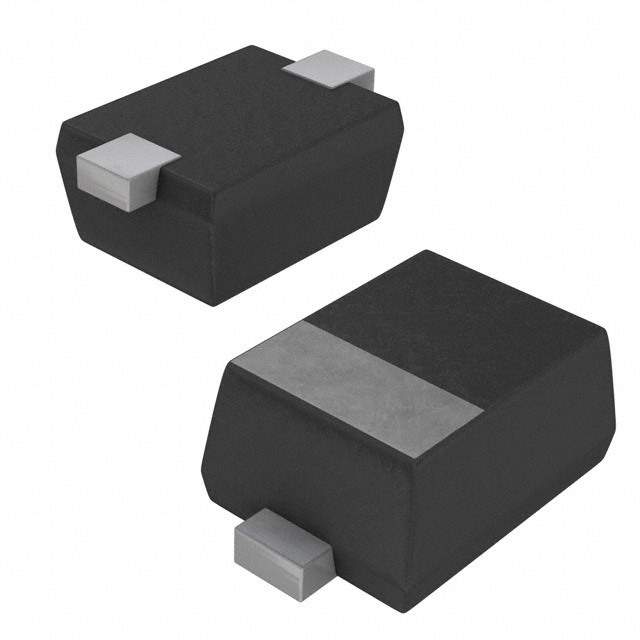

VESD05A1C-02Z-GS08 Real Image
Same model may have multiple batches, images only for reference.

VESD05A1C-02Z-GS08

Part No VESD05A1C-02Z-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5VWM 10VC SOD923
Datasheet
VESD05A1C-02Z-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 10V
Peak Pulse Current(Ippm) 8A (8/20μs)
Power Dissipation - Pd 80W
Applications General Purpose
Capacitance @ Frequency 63pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-923
Win Source Part Number 1116997-VESD05A1C-02Z-GS08
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VESD05A1C-02Z-GS08 CAD Model

Description

The VESD05A1C-02Z-GS08 is a Vishay manufactured electronic component that is used in a variety of applications.

  • Type: Zener
  • Peak Pulse Current: 8A (8/20μs)
  • Manufacturer Packaging: Reel - TR
  • Mounting: SMD (SMT) technology
  • Temperature Range: -40°C to 125°C (TJ)
