Same model may have multiple batches, images only for reference.

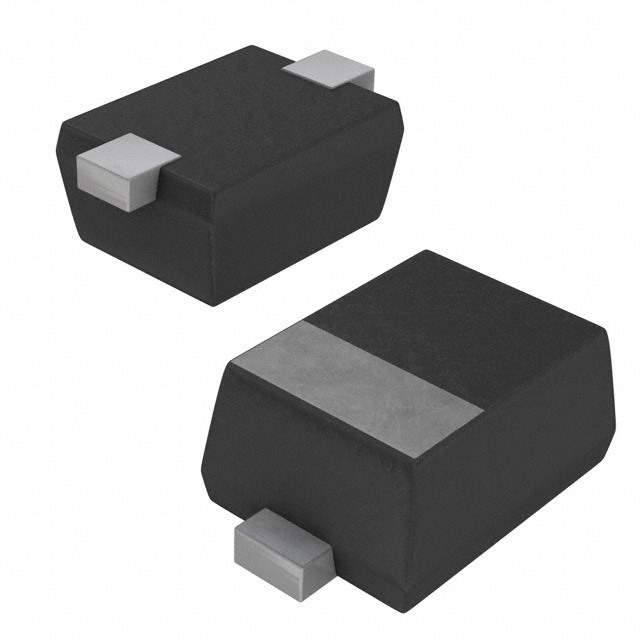

VESD12A1C-02Z-GS08 Real Image
Same model may have multiple batches, images only for reference.

VESD12A1C-02Z-GS08

Part No VESD12A1C-02Z-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 12VWM 23VC SOD923
Datasheet
VESD12A1C-02Z-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V (Max)
Minimum Breakdown Voltage 13.5V
Max Clamping Voltage 23V
Peak Pulse Current(Ippm) 4A (8/20μs)
Power Dissipation - Pd 92W
Applications General Purpose
Capacitance @ Frequency 30pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-923
Win Source Part Number 1117006-VESD12A1C-02Z-GS08
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VESD12A1C-02Z-GS08 CAD Model

Description

If you're looking for a high-quality zener for your electronic devices, consider this product from Vishay.

  • Lifecycle Status: Obsolete (EOL)
  • Case/Package: SOD-923
  • Stand-Off Voltage: 12V (Max)
  • Minimum Breakdown Voltage: 13.5V
  • Max Clamping Voltage: 23V
  • Peak Pulse Current (Ippm): 4A (8/20μs)
  • Power Dissipation - Pd: 92W
