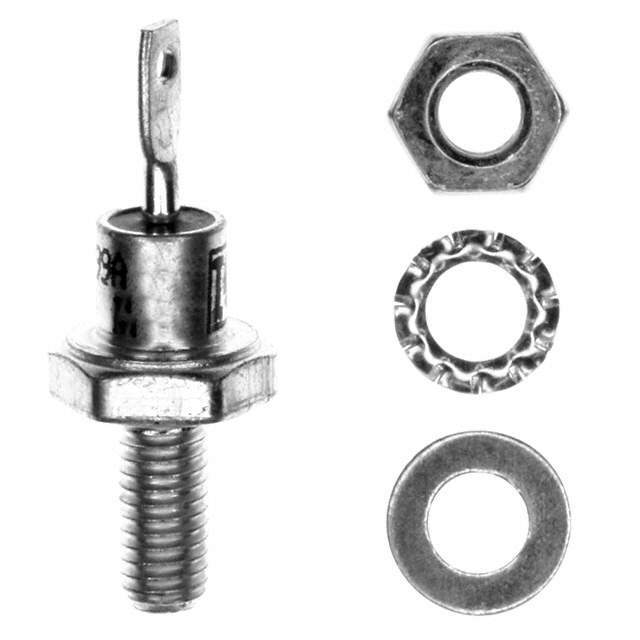

VS-1N3891R Real Image
Same model may have multiple batches, images only for reference.

VS-1N3891R

Part No VS-1N3891R
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 200V 12A DO203AA
Datasheet
VS-1N3891R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 200V
Current - Average Rectified (Io) 12A
Voltage - Forward (Vf) (Maximum) @ If 1.4V @ 12A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 300ns
Current - Reverse Leakage @ Vr 25μA @ 200V
Mounting Chassis, Stud Mount
Package DO-203AA, DO-4, Stud
Manufacturer Package DO-203AA
Operating Temperature - Junction -65°C ~ 150°C
Win Source Part Number 760914-VS-1N3891R
Popularity Medium
Supply and Demand Status Limited
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-1N3891R CAD Model

Description

The Vishay Semiconductor Diodes Division 760914-VS-1N3891R is a standard diode that is suitable for fast recovery.

  • Current Rating: 12A
  • Maximum Reverse Voltage: 200V
  • Package: DO-203AA, DO-4, Stud
  • Mounting: Chassis, Stud
  • Reverse Recovery Time: 300ns
  • Reverse Leakage Current: 25μA @ 200V
  • Operating Temperature Range: -65°C to 150°C
  • Category: Discrete Semiconductor Products
  • Packaging: Bulk
  • Supply and Demand Status: Limited
