Same model may have multiple batches, images only for reference.

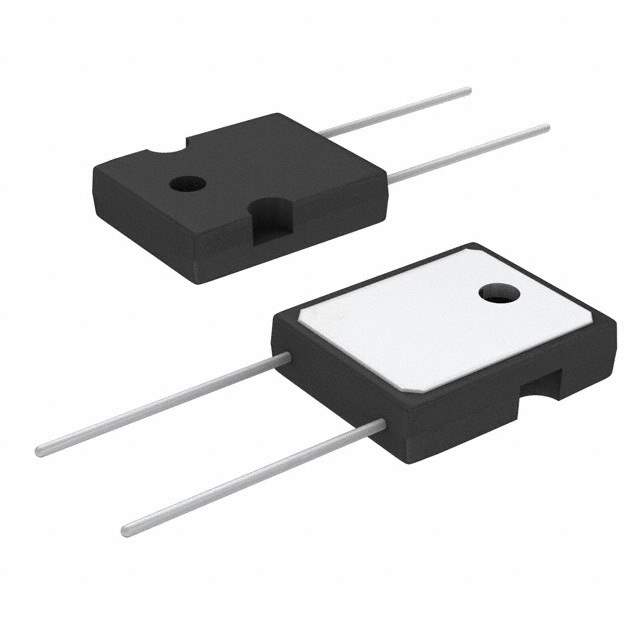

VS-35EPF12LHM3 Real Image
Same model may have multiple batches, images only for reference.

VS-35EPF12LHM3

Part No VS-35EPF12LHM3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.2KV 35A TO247AD / Diode 1200 V 35A Through Hole TO-247AD
Datasheet
VS-35EPF12LHM3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101
Package Tube
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Max) @ If 1.47 V @ 35 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 450 ns
Current - Reverse Leakage @ Vr 100 µA @ 1200 V
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247AD
Operating Temperature - Junction -40°C ~ 150°C
Base Product Number 35EPF12
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1351869-VS-35EPF12LHM3
Ultra Librarian 3D Model Ultra Librarian VS-35EPF12LHM3 CAD Model

Description

The Vishay General Semiconductor - Diodes Division rectifier is a single diode that belongs to the Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes category.

  • Product Category: Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
  • Package: Tube
  • Standard Package: 500
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8541.10.0080
  • Voltage - DC Reverse (Vr) (Max): 1200 V
  • Voltage - Forward (Vf) (Max) @ If: 1.47 V @ 35 A
