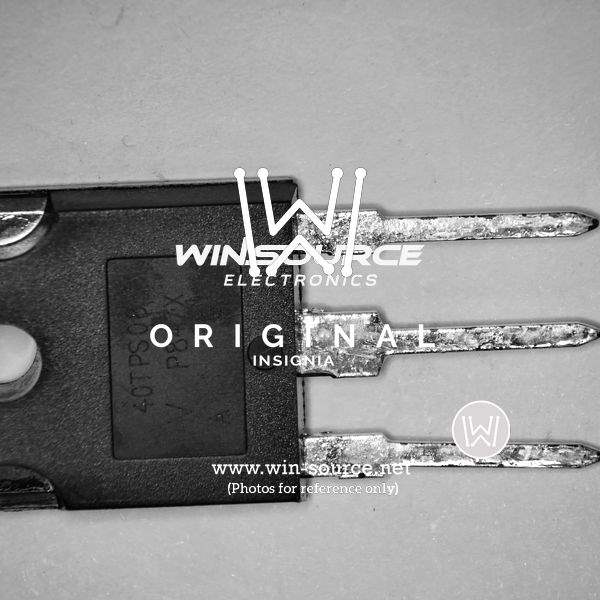

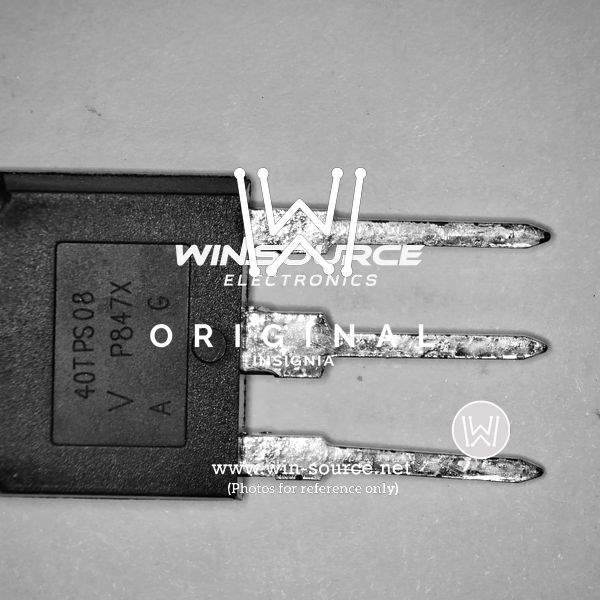

VS-40TPS08-M3 Real Image VS-40TPS08-M3 Real Image1 VS-40TPS08-M3 Real Image2
Same model may have multiple batches, images only for reference.
VS-40TPS08-M3 Real Image VS-40TPS08-M3 Real Image1 VS-40TPS08-M3 Real Image2
VS-40TPS08-M3 Real Image VS-40TPS08-M3 Real Image1 VS-40TPS08-M3 Real Image2
Same model may have multiple batches, images only for reference.

VS-40TPS08-M3

Part No VS-40TPS08-M3
Manufacturer Vishay
Catalog SCRs - Single
Description SCR 800V 55A TO-247 / SCR 800V 55A(RMS) 600A 3-Pin(3+Tab) TO-247AC Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Voltage - Off State 800V
Voltage - Gate Trigger (Vgt) (Maximum) 2.5V
Current - Gate Trigger (Igt) (Maximum) 150mA
Voltage - On State (Vtm) (Maximum) 1.85V
Current - On State (It (AV)) (Maximum) 35A
Current - On State (It (RMS)) (Maximum) 55A
Current - Hold (Ih) (Maximum) 200mA
Current - Off State (Maximum) 500μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 500A @ 50Hz
SCR Type Standard Recovery
Operating Temperature Range -40°C ~ 125°C
Mounting Style Through Hole
Package TO-247-3
Manufacturer Package TO-247AC
Win Source Part Number 799202-VS-40TPS08-M3
Popularity Medium
Supply and Demand Status Limited
Family Name VS-40TPS08
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VS-40TPS08-M3 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-40TPS08-M3 is a standard recovery SCR from Vishay Semiconductor Diodes Division.

  • Package: TO-247-3
  • Voltage Off State: 800V
  • Estimated EOL Date: 2027
