VS-95SQ015

Part No VS-95SQ015
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 15V 9A DO204AR
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Part Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 15V
Current - Average Rectified (Io) 9A
Voltage - Forward (Vf) (Maximum) @ If 310mV @ 9A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 7mA @ 15V
Mounting Style Through Hole
Package DO-204AR, Axial
Manufacturer Package DO-204AR
Operating Temperature - Junction -55°C ~ 100°C
Win Source Part Number 766535-VS-95SQ015
Popularity Medium
Supply and Demand Status Limited
Family Name VS-95SQ015
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VS-95SQ015 CAD Model

Description

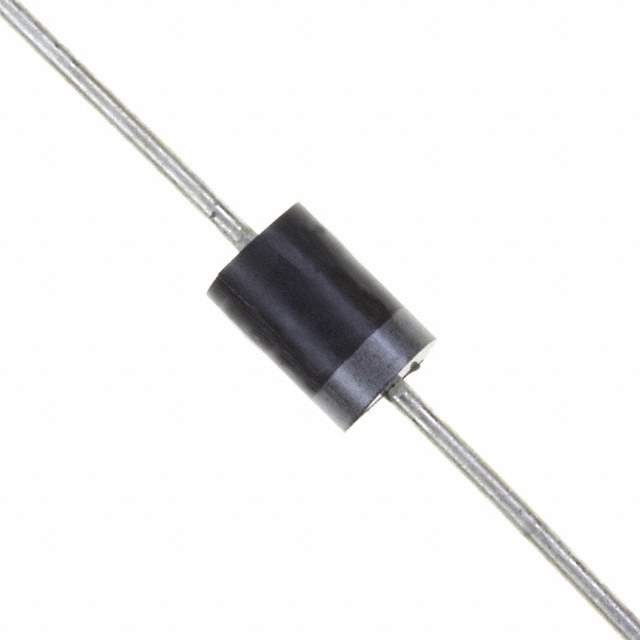

The Vishay VS-95SQ015 is a Schottky diode that comes in a DO-204AR axial package.

  • Average Rectified Current: 9A
  • Reverse Leakage Current: 7mA @ 15V
  • Voltage Forward: 310mV @ 9A
  • Maximum Reverse Voltage: 15V
  • Mounting: Through-hole
  • Operating Temperature: -55°C to 100°C
  • Halogen Free: Yes
  • ECCN: EAR99
  • Alternative Parts: SHD118168, SHD118168A-G, SHD118168-G
