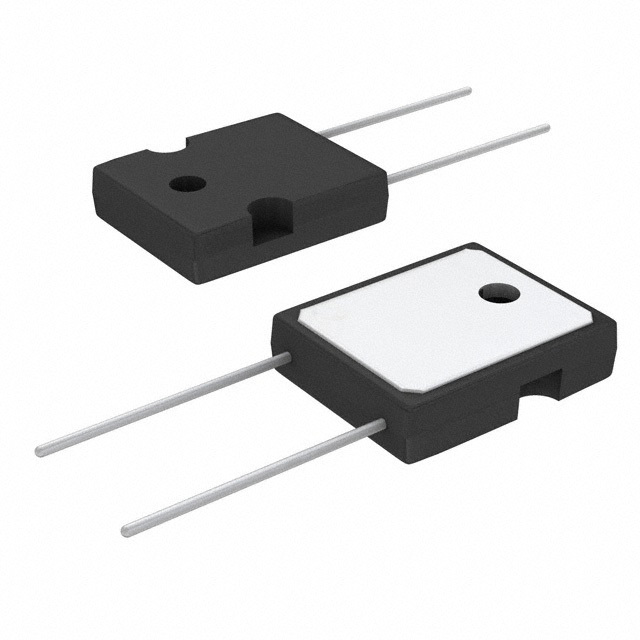

VS-E5PH6012L-N3 Vishay
Same model may have multiple batches, images only for reference.

VS-E5PH6012L-N3

Part No VS-E5PH6012L-N3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.2KV 60A TO247AD / Diode 1200 V 60A Through Hole TO-247AD
Datasheet
VS-E5PH6012L-N3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series FRED Pt®
Package Tube
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Max) @ If 2.3 V @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 130 ns
Current - Reverse Leakage @ Vr 50 µA @ 1200 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247AD
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number E5PH6012
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1357161-VS-E5PH6012L-N3
Ultra Librarian 3D Model Ultra Librarian VS-E5PH6012L-N3 CAD Model

Description

The VS-E5PH6012L-N3 is a single diode rectifier from Vishay General Semiconductor - Diodes Division.

  • Series: FRED Pt®
  • Maximum Reverse Voltage (Vr): 1200V
  • Average Rectified Current (Io): 60A
  • Forward Voltage (Vf): 2.3V @ 60A
  • Reverse Recovery Time (trr): 130ns
  • Mounting Type: Through-Hole
  • Package: TO-247-2
  • REACH: Unaffected
  • ECCN: EAR99
  • Operating Temperature: -55°C to 175°C
