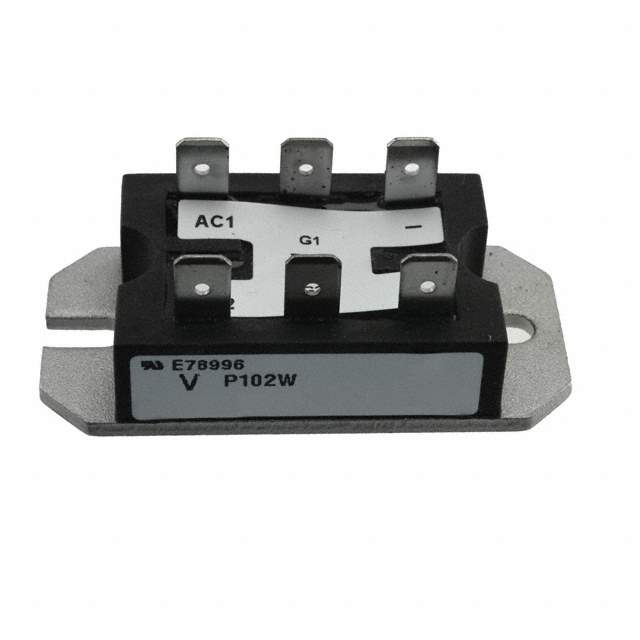

VS-P101W Real Image
Same model may have multiple batches, images only for reference.

VS-P101W

Part No VS-P101W
Manufacturer Vishay
Catalog SCRs - Single - Modules
Description SCR HY-BRIDGE 400V 25A PACE-PAK / SCR Module Diode 400V 375A 8-Pin Case D-19
Datasheet
VS-P101W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Structure Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes 2 SCRs, 2 Diodes
Voltage - Off State 400V
Current - On State (It (RMS)) (Maximum) 25A (DC)
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 60mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 357A, 375A
Current - Hold (Ih) (Maximum) 130mA
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Chassis Mount
Package 8-PACE-PAK
Win Source Part Number 791086-VS-P101W
Popularity Medium
Supply and Demand Status Limited
Family Name VS-P101W
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VS-P101W CAD Model

Description

Vishay Semiconductor Diodes Division presents the VS-P101W structure bridge, single phase - SCRs/diodes (layout 1) in an 8-PACE-PAK package.

  • Mounting Type: Chassis Mount
  • Off-State Voltage: 400V
  • Current on State (It (RMS)) (maximum): 25A (DC)
  • Voltage Gate Trigger (Vgt) (maximum): 2V
  • Current Gate Trigger (Igt) (maximum): 60mA
  • Current Hold (Ih) (maximum): 130mA
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2027
