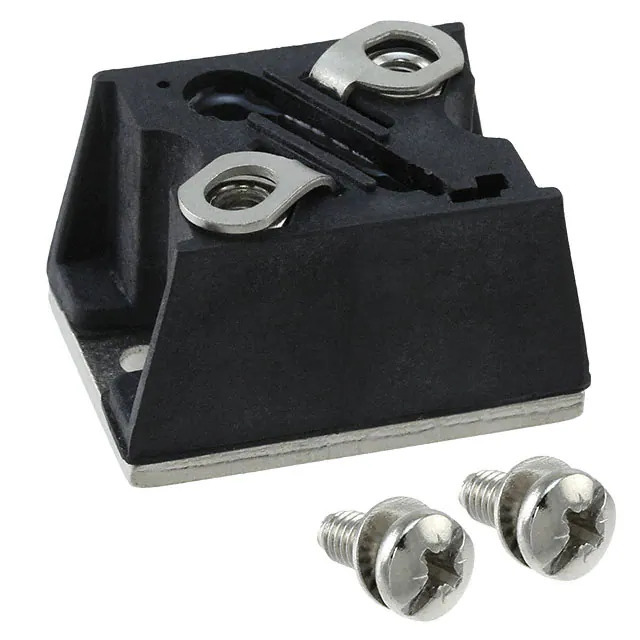

VS-T40HFL100S05 Vishay
Same model may have multiple batches, images only for reference.

VS-T40HFL100S05

Part No VS-T40HFL100S05
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1KV 40A D-55
Datasheet
VS-T40HFL100S05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series -
Package Bulk
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 40A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 500 ns
Current - Reverse Leakage @ Vr 100 µA @ 1000 V
Capacitance @ Vr, F -
Mounting Type Chassis Mount
Package / Case D-55 T-Module
Supplier Device Package D-55
Base Product Number T40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368280-VS-T40HFL100S05
Ultra Librarian 3D Model Ultra Librarian VS-T40HFL100S05 CAD Model

Description

The Vishay General Semiconductor - Diodes Division VS-T40HFL100S05 is a single diode rectifier designed for discrete semiconductor applications.

  • Maximum DC Reverse Voltage (Vr): 1000V
  • Average Rectified Current (Io): 40A
  • Recovery Time: Less than 500ns
  • Reverse Leakage Current: 100μA @ 1000V
  • Package: D-55 T-Module
