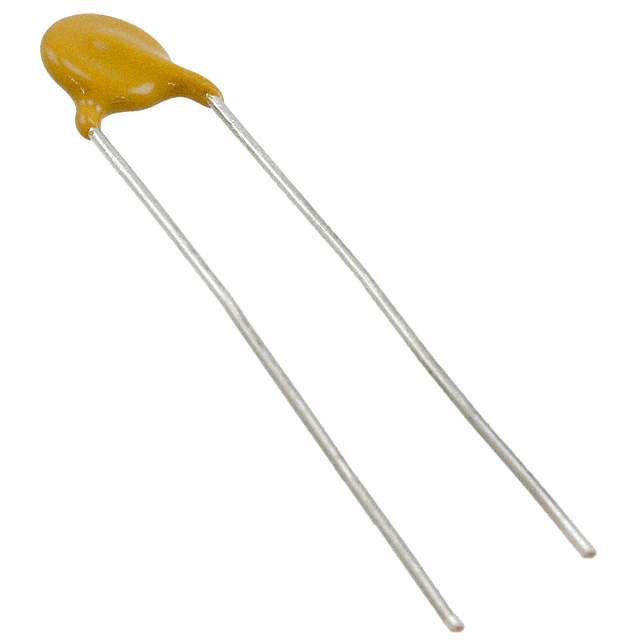

VY1220K31U2JQ6TV0 Real Image
Same model may have multiple batches, images only for reference.

VY1220K31U2JQ6TV0

Part No VY1220K31U2JQ6TV0
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 22PF 760VAC U2J RADIAL / 22 pF ±10% 760VAC Ceramic Capacitor U2J Radial, Disc
Datasheet
VY1220K31U2JQ6TV0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series VY1
Package Tape & Reel (TR),Cut Tape (CT)
Capacitance 22 pF
Tolerance ±10%
Voltage - Rated 760VAC
Temperature Coefficient U2J
Temperature Range - Operating -40°C ~ 125°C
Ratings X1, Y1
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Lead Spacing 0.394" (10.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Other Names VY1220K31U2JQ6TV0-ND,BC5261CT,BC5261TR
Standard Package 500
Win Source Part Number 958308-VY1220K31U2JQ6TV0
Ultra Librarian 3D Model Ultra Librarian VY1220K31U2JQ6TV0 CAD Model

Description

The VY1 series capacitor from Vishay Beyschlag/Draloric/BC Components is a ceramic capacitor with a capacitance of 22 pF and a voltage rating of 760VAC. The capacitor has a tolerance of ±10% and a temperature coefficient of U2J.

  • Rating: X1, Y1
  • Maximum Seated Height: 0.472" (12.00mm)
  • Lead Spacing: 0.394" (10.00mm)
  • Package/Case: Radial, Disc
  • Lead Style: Formed leads - kinked
  • Packaging: Tape & reel (TR), cut tape (CT)
  • Standard Package: 500
  • Operating Temperature Range: -40°C to 125°C
  • Diameter: 0.315" (8.00mm)
  • Alternative Parts for Cross-Reference: GRM31A7U3A220JW31D and GRM31A7U2J220JW31D
