Same model may have multiple batches, images only for reference.

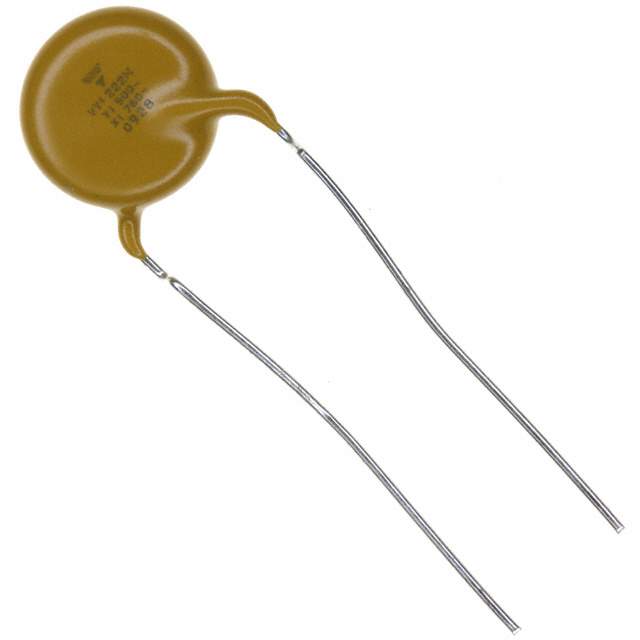

VY1222M47Y5UQ6UV0 Real Image
Same model may have multiple batches, images only for reference.

VY1222M47Y5UQ6UV0

Part No VY1222M47Y5UQ6UV0
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 2200PF 760VAC Y5U RADIAL / 2200 pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc
Datasheet
VY1222M47Y5UQ6UV0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series VY1
Package Cut Tape (CT),Tape & Box (TB)
Capacitance 2200 pF
Tolerance ±20%
Voltage - Rated 760VAC
Temperature Coefficient Y5U (E)
Temperature Range - Operating -40°C ~ 125°C
Ratings X1, Y1
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.630" (16.00mm)
Lead Spacing 0.394" (10.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Other Names VY1222M47Y5UQ6UV0-ND,BC5245TB,BC5245CT
Standard Package 750
Win Source Part Number 958925-VY1222M47Y5UQ6UV0
Ultra Librarian 3D Model Ultra Librarian VY1222M47Y5UQ6UV0 CAD Model

Description

The VY1222M47Y5UQ6UV0 is a ceramic capacitor manufactured by Vishay. This capacitor has a capacitance of 2200 pF and is rated @ 760VAC. It has a tolerance of ±20% and a temperature coefficient of Y5U (E). The VY1222M47Y5UQ6UV0 has a radial, disc package and is mounted through hole. The supply and demand status of this capacitor is currently unaffected by REACH.

  • Capacitance: 2200 pF
  • Voltage Rating: 760VAC
  • Tolerance: ±20%
  • Temperature Coefficient: Y5U (E)
  • Package: Radial, Disc
  • Mounting Type: Through Hole
  • REACH Status: Unaffected
