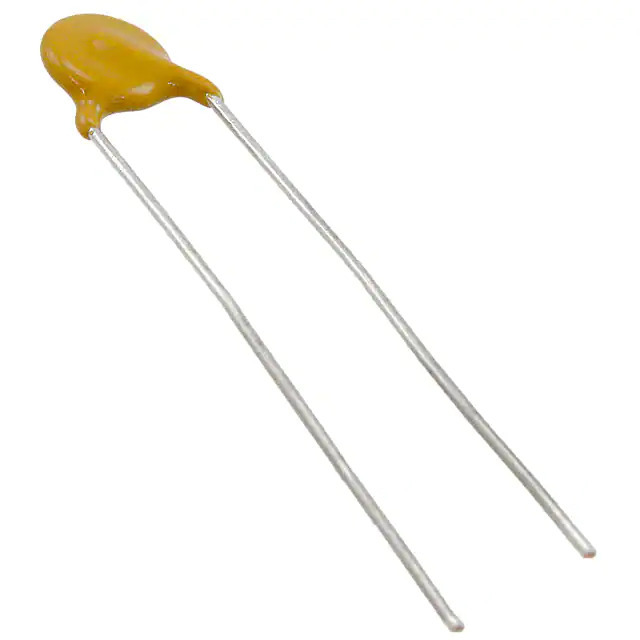

Same model may have multiple batches, images only for reference.
VY1681M31Y5UQ6TV0 Vishay
Same model may have multiple batches, images only for reference.

VY1681M31Y5UQ6TV0

Part No VY1681M31Y5UQ6TV0
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 680PF 760VAC Y5U RADIAL / 680 pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc
Datasheet
VY1681M31Y5UQ6TV0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series VY1
Package Tape & Reel (TR)
Product Status Active
Capacitance 680 pF
Tolerance ±20%
Voltage - Rated 760VAC
Temperature Coefficient Y5U (E)
Temperature Range - Operating -40°C ~ 125°C
Features -
Ratings X1, Y1
Applications Safety
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Thickness (Max) -
Lead Spacing 0.394" (10.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1360486-VY1681M31Y5UQ6TV0
Ultra Librarian 3D Model Ultra Librarian VY1681M31Y5UQ6TV0 CAD Model

Description

The VY1 series from Vishay Beyschlag/Draloric/BC Components is a radial, disc ceramic capacitor with a capacitance of 680pF and a voltage rating of 760VAC.

  • Tolerance: ±20%
  • Application: X1 and Y1
  • Temperature Range: -40°C to 125°C
  • Lead Spacing: 0.394" (10.00mm)
  • Size: 0.315" Dia (8.00mm)
  • Height: 0.472" (12.00mm)
  • Mounting Type: Through hole
  • Packaging: Tape & reel (TR)
  • REACH Compliance: REACH unaffected
  • Status: Active product
