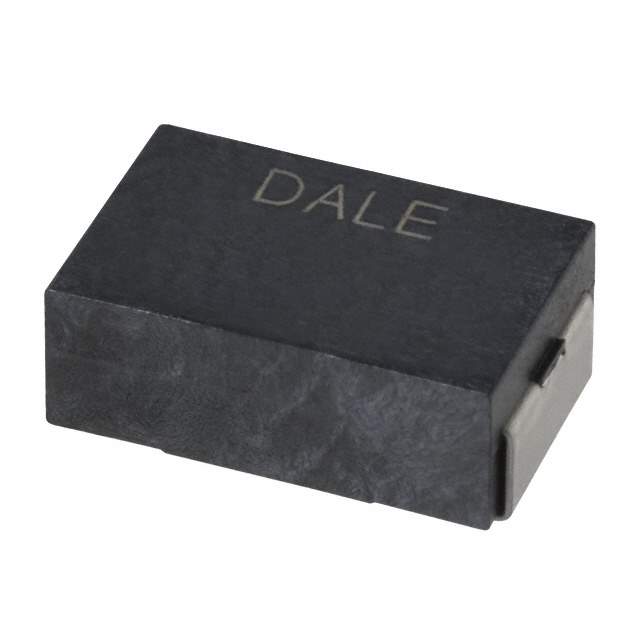

WSC45275R000FEA Real Image
Same model may have multiple batches, images only for reference.

WSC45275R000FEA

Part No WSC45275R000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 5 OHM 1% 2W 4527
Datasheet
WSC45275R000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay Dale
Series WSC
Packaging Reel - TR
Resistance (Ohms) 5
Tolerance ±1%
Power (Watts) 2W
Composition Wirewound
Features Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Operating Temperature Range -65°C ~ 275°C
Package 4527 J-Lead
Manufacturer Package 4527
Size 0.455" L x 0.275" W (11.56mm x 6.98mm)
Height - Seated (Maximum) 0.177" (4.49mm)
Number of Terminations 2
Manufacturer Vishay
Manufacturer Homepage www.vishay.com
Win Source Part Number 735800-WSC45275R000FEA
Popularity Medium
Supply and Demand Status Limited
Family Name WSC
Introduction Date December 31, 2005
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian WSC45275R000FEA CAD Model

Description

The WSC45275R000FEA is a wirewound resistor from Vishay Dale.

  • Series: WSC
  • Package: 4527 J-lead
  • Mounting Type: Surface Mount Technology (SMT)
  • Power: 2W
  • Tolerance: ±1%
  • ECCN: EAR99
  • Halogen Free: Compliant
  • Packaging: Reel
  • Estimated EOL Date: 2025

The WSC45275R000FEA is a high-quality and reliable device that is perfect for use in a variety of electronic applications.
