Same model may have multiple batches, images only for reference.

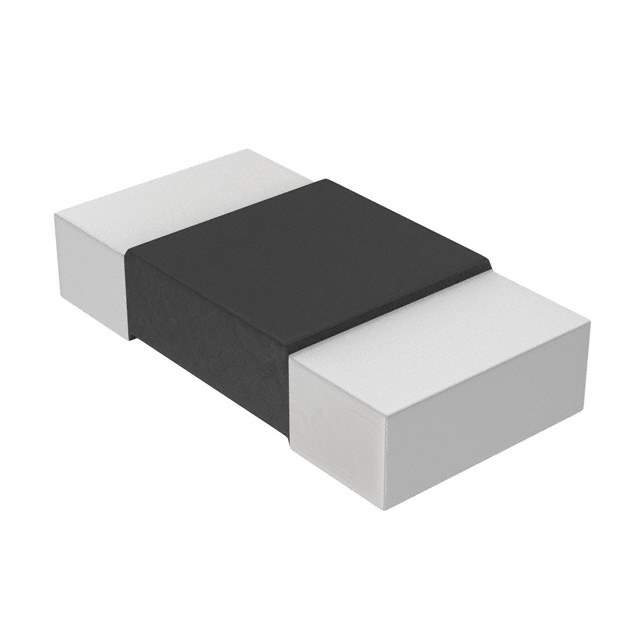

WSL0603R1000FEA Real Image
Same model may have multiple batches, images only for reference.

WSL0603R1000FEA

Part No WSL0603R1000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.1 OHM 1% 1/10W 0603  /  100 mOhms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSL0603R1000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSL
Package Tape & Reel
Resistance 100 mOhms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Metal Element
Features Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Dimension 0.060" L x 0.030" W (1.52mm x 0.76mm)
Height - Seated (Max) 0.021" (0.53mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names WSLJ-.1DKR,WSLJ-.1CT,WSLJ-.1TR,Q6936817CU
Standard Package 5,000
Win Source Part Number 966691-WSL0603R1000FEA
Ultra Librarian 3D Model Ultra Librarian WSL0603R1000FEA CAD Model

Description

The Vishay Dale WSL series WSL0603R1000FEA is a chip resistor that is designed for surface mount applications.

  • Manufacturer: Vishay Dale
  • Series: WSL
  • Mounting: Surface Mount
  • Package: Tape & Reel
  • Standard Package: 5000
  • Features: Anti-sulfur, automotive AEC-Q200, current sense, moisture resistant, and pulse-withstanding
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Rating: AEC-Q200
  • Power Rating: 0.1W or 1/10W
  • Element: Metal
  • Terminations: Two
  • Resistance: 100 mOhms
  • Package/Case: 0603 (1608 Metric)
  • ECCN: EAR99
  • HTSUS: 8533.21.0030
