Same model may have multiple batches, images only for reference.

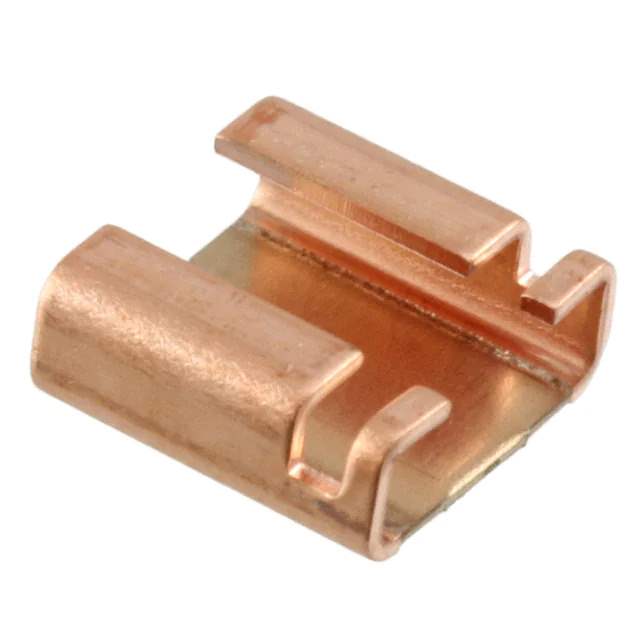

WSLP2726L5000FEA Real Image
Same model may have multiple batches, images only for reference.

WSLP2726L5000FEA

Part No WSLP2726L5000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 500 UOHM 1% 7W 2726
Datasheet
WSLP2726L5000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay
Series WSLP2726
Package Tape & Reel
Product Status Active
Resistance 0.5 mOhms
Tolerance ±1%
Power (Watts) 7W
Composition Metal Element
Features Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case Nonstandard
Supplier Device Package 2726
Ratings AEC-Q200
Size / Dimension 0.272" L x 0.260" W (6.90mm x 6.60mm)
Height - Seated (Max) 0.124" (3.15mm)
Number of Terminations 4
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 848422-WSLP2726L5000FEA
Ultra Librarian 3D Model Ultra Librarian WSLP2726L5000FEA CAD Model

Description

The 848422-WSLP2726L5000FEA is a chip resistor designed for surface mount applications from Vishay.

  • Series: WSLP2726
  • Features: Anti-Sulfur, Automotive AEC-Q200, Current Sensing, Moisture Resistance, Pulse Withstand
  • Packaging: Tape & Reel
  • Standard Package: 1,500 pieces
  • Size: 0.272" L x 0.260" W (6.90mm x 6.60mm)
  • Height: 0.124" (3.15mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Power Rating: 7W
  • Resistance: 0.5 mOhms
  • Status: Active
  • AEC-Q200: Yes
