Same model may have multiple batches, images only for reference.

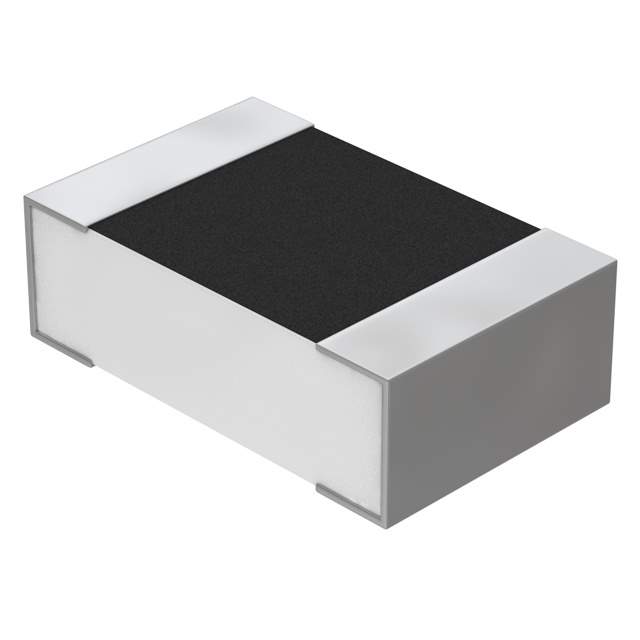

Y16241K00000T9R Real Image
Same model may have multiple batches, images only for reference.

Y16241K00000T9R

Part No Y16241K00000T9R
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 1K OHM 0.01% 1/5W 0805  /  1 kOhms ±0.01% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) Moisture Resistant, Non-Inductive Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series VSMP
Package Tape & Reel
Resistance 1 kOhms
Tolerance ±0.01%
Power (Watts) 0.2W, 1/5W
Composition Metal Foil
Features Moisture Resistant, Non-Inductive
Temperature Coefficient ±0.2ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.025" (0.64mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names Y1624-1KTR,VSMP08051K00000TCR0.2TST,Y1624-1KDKR,Y1624-1KCT
Standard Package 100
Win Source Part Number 1205618-Y16241K00000T9R
Ultra Librarian 3D Model Ultra Librarian Y16241K00000T9R CAD Model

Description

The VSMP series is a chip resistor designed for surface mount applications.

  • Manufacturer: Vishay Foil Resistors (Division of Vishay Precision Group)
  • Win Source Part Number: 1205618-Y16241K00000T9R
  • Power Rating: 0.2W
  • Resistance: 1 kOhms
  • Tolerance: ±0.01%
  • Temperature Coefficient: ±0.2ppm/°C
  • Package: tape and reel
  • Standard Package: 100
  • Height Seated (Max): 0.025" (0.64mm)
  • Package/Case: 0805 (2012 Metric)
  • Category: resistors
  • ECCN: EAR99
  • HTSUS: 8533.21.0030
