Same model may have multiple batches, images only for reference.

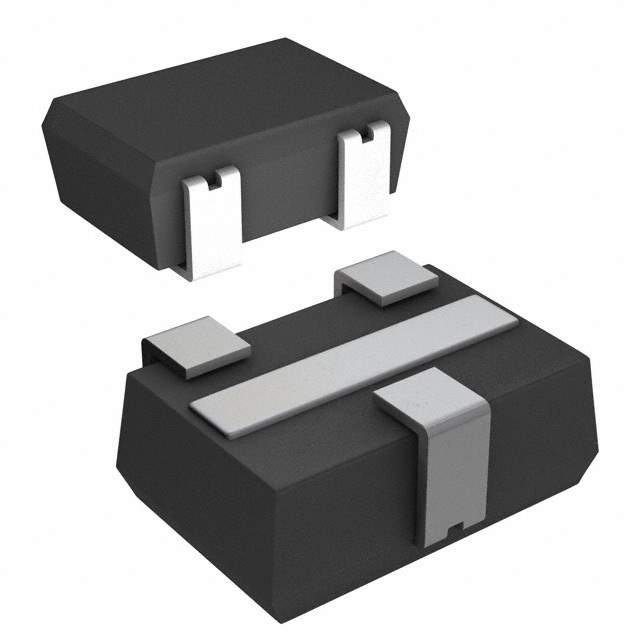

Y4485V0002QT9L Real Image
Same model may have multiple batches, images only for reference.

Y4485V0002QT9L

Part No Y4485V0002QT9L
Manufacturer Vishay
Catalog Resistor Networks, Arrays
Description RES NETWORK 2 RES 5K OHM 1610 / 5k Ohm ±0.02% 50mW Power Per Element Voltage Divider 2 Resistor Network/Array ±0.2ppm/°C 1610 J-Lead (3 Terminals)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series DSMZ
Package Bulk
Circuit Type Voltage Divider
Resistance (Ohms) 5k
Tolerance ±0.02%
Number of Resistors 2
Resistor Matching Ratio ±0.01%
Resistor-Ratio-Drift ±0.1ppm/°C
Number of Pins 3
Power Per Element 50mW
Temperature Coefficient ±0.2ppm/°C
Temperature Range - Operating -65°C ~ 125°C
Applications Voltage Divider (TCR Matched)
Mounting Type Surface Mount
Package / Case 1610 J-Lead (3 Terminals)
Size / Dimension 0.160" L x 0.106" W (4.06mm x 2.69mm)
Height - Seated (Max) 0.071" (1.80mm)
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 1337866-Y4485V0002QT9L
Ultra Librarian 3D Model Ultra Librarian Y4485V0002QT9L CAD Model

Description

The DSMZ series of resistor networks and arrays from Vishay Foil Resistors (Division of Vishay Precision Group) includes the Y4485V0002QT9L component.

  • Type: Voltage Divider (TCR Matched)
  • Package Type: Bulk
  • Size/Dimension: 0.160" L x 0.106" W (4.06mm x 2.69mm)
  • Height - Seated: 0.071" (1.80mm)
  • Standard Package: 25
  • Tolerance: ±0.02%
  • Temperature Coefficient: ±0.2ppm/°C
  • Resistance: 5k Ohms
  • Circuit Type: Voltage Divider
  • Number of Resistors: 2
  • Number of Pins: 3
  • Power per Element: 50mW
  • Mounting Type: Surface Mount
  • Package/Case: 1610 J-Lead (3 Terminals)
  • Operating Temperature: -65°C ~ 125°C
  • ECCN: EAR99
  • HTSUS Code: 8533.21.0020
  • MSL: 1
  • Resistor Matching Ratio: ±0.01%
  • Resistor-Ratio-Drift: ±0.1ppm/°C
