Same model may have multiple batches, images only for reference.

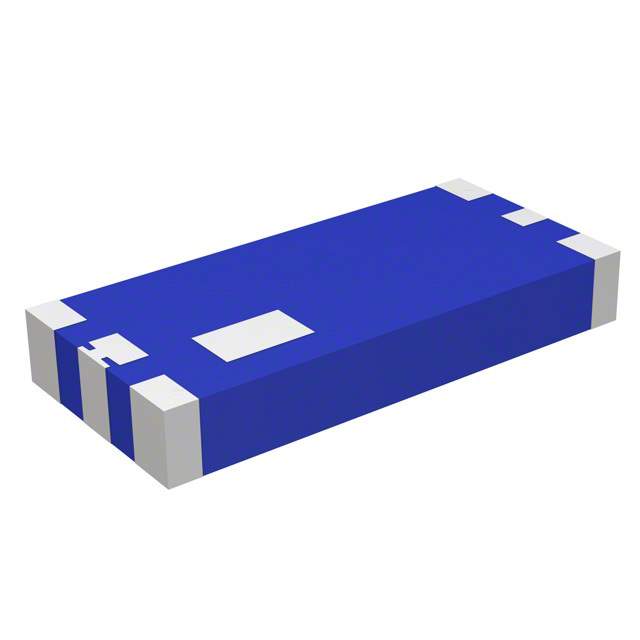

RFANT7635110A1T Real Image
Same model may have multiple batches, images only for reference.

RFANT7635110A1T

Part No RFANT7635110A1T
Manufacturer Walsin Technology Corporation
Catalog RF Antennas
Description 2.4GHZ CERAMIC CHIP ANTENNA
Datasheet
RFANT7635110A1T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Walsin Technology Corporation
Packaging Reel - TR
Status Active
Frequency Group UHF (2 GHz to 3 GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.26GHz to 2.64GHz
Antenna Type Chip
Number of Bands 1
VSWR 2
Gain 2dBi
Maximum Power Dissipation 5W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.043" (1.10mm)
Applications Bluetooth, WLAN
Win Source Part Number 210751-RFANT7635110A1T
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian RFANT7635110A1T CAD Model

Description

The Walsin Technology Corporation antenna is a reliable and efficient electronic component that is suitable for Bluetooth and WLAN applications.

  • Frequency Range: 2.26GHz to 2.64GHz
  • Frequency Group: UHF (2 GHz to 3 GHz)
  • Frequency: 2.4GHz
  • Gain: 2dBi
  • VSWR: 2
  • Maximum Power Dissipation: 5W
  • Mounting: Surface mount, SMD (SMT)
  • Package: Reel of 1000 units
  • Height: 0.043" (1.10mm)
  • Popularity: Highly popular
  • Supply and Demand: Balance in supply and demand
  • Compliance: Compliant with Halogen Free
  • ECCN: EAR99
